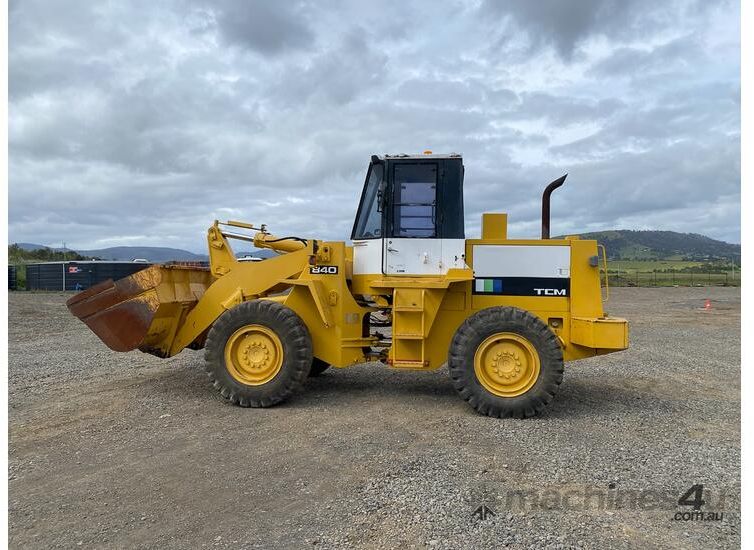

TCM 840
Browse All TCM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.19 ft in (2800 mm) |
| Bucket Capacity - Heaped | 3.14 yd3 (2.4 m3) |
| Bucket Capacity - Struck | 2.62 yd3 (2 m3) |
| Bucket Width | 8.14 ft in (2480 mm) |
| Breakout Force | 23590 lb (104.94 kN) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 21.76 ft in (6630 mm) |
| Width Over Tires | 7.91 ft in (2410 mm) |
| Height To Top Of Cab | 10.47 ft in (3190 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 12.14 ft in (3700 mm) |
| Reach At Max Lift And Dump | 3.48 ft in (1060 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | 6BDIT |
| Net Power | 123 hp (91.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 329 lb ft (446.1 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 21803.8 lb (9890 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Engine Oil Fluid Capacity | 2.7 gal (10 L) |
| Cooling System Fluid Capacity | 10.9 gal (41 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Axle/Diff Fluid Capacity | 9 gal (34 L) |
| Rear Axle/Diff Fluid Capacity | 9 gal (34 L) |
| Static Tipping Weight | 17747.3 lb (8050 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 25 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 17.5-25-12PR L2 |
Transmission
| Transmission Type | countershaft type full powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.7 mph (34.8 km/h) |
| Max Speed - Reverse | 21.7 mph (34.8 km/h) |
Hydraulic System
| Relief Valve Setting | 2700 psi (18615.9 kPa) |
| Pump Flow Capacity | 48.7 gal/min (184 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3 sec |
| Pump Type | closed and pressurized |
