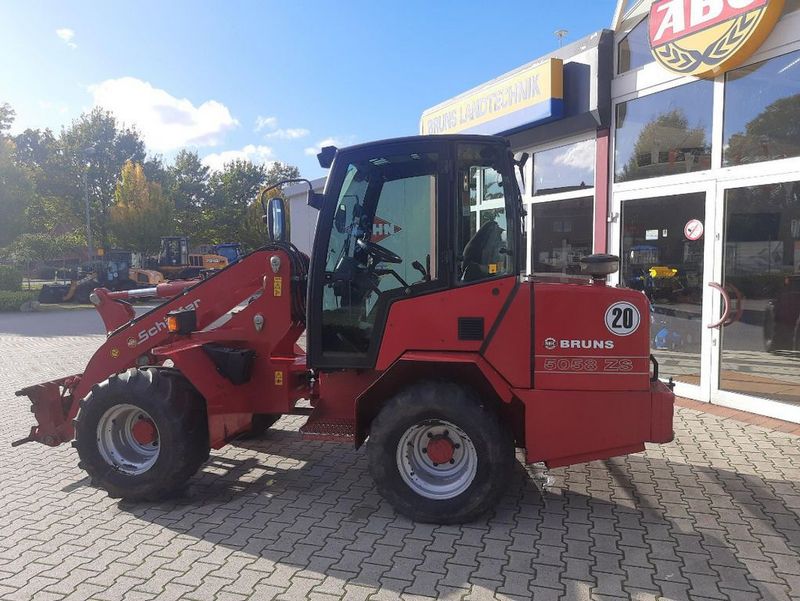

Schaffer 5058ZS
Browse All Schaffer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.86 ft in (2700 mm) |
| Bucket Capacity - Heaped | 0.99 yd3 (0.75 m3) |
| Breakout Force | 6069.85 lb (27 kN) |
Dimensions
| Length With Bucket On Ground | 15.59 ft in (4750 mm) |
| Width Over Tires | 5.25 ft in (1600 mm) |
| Height To Top Of Cab | 7.71 ft in (2350 mm) |
| Wheelbase | 6.34 ft in (1930 mm) |
| Hinge Pin - Max Height | 11.16 ft in (3400 mm) |
| Reach At Max Lift And Dump | 1.97 ft in (600 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | V3300E |
| Gross Power | 70 hp (52.2 kw) |
Operational
| Operating Weight | 11023.2 lb (5000 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Static Tipping Weight | 6834.4 lb (3100 kg) |
| Tire Size | 365X70-18 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 5000 psi (34473.8 kPa) |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
