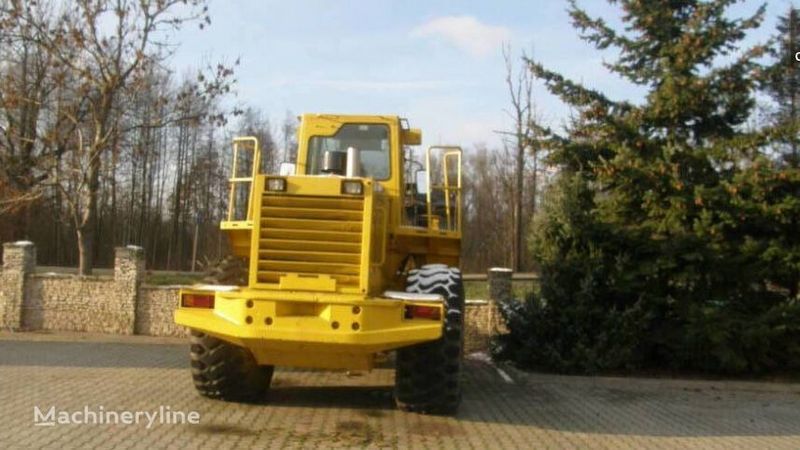

Samsung SL250-2
Browse All Samsung or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.98 ft in (3040 mm) |
| Breakout Force | 41000 lb (182.38 kN) |
| Bucket Capacity - Heaped | 4.84 yd3 (3.7 m3) |
| Bucket Capacity - Struck | 4.19 yd3 (3.2 m3) |
| Bucket Width | 10.14 ft in (3090 mm) |
Dimensions
| Ground Clearance | 1.46 ft in (445 mm) |
| Length With Bucket On Ground | 27.47 ft in (8370 mm) |
| Height To Top Of Cab | 11.4 ft in (3474 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Hinge Pin - Max Height | 13.57 ft in (4136 mm) |
| Reach At Max Lift And Dump | 4.07 ft in (1240 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | LTA10-C |
| Net Power | 256 hp (190.9 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 845.7 lb ft (1146.6 Nm) |
| Displacement | 610.3 cu in (10 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 45966.4 lb (20850 kg) |
| Fuel Capacity | 96.2 gal (364 L) |
| Hydraulic System Fluid Capacity | 67.4 gal (255 L) |
| Cooling System Fluid Capacity | 17.4 gal (65.8 L) |
| Transmission Fluid Capacity | 8.5 gal (32 L) |
| Static Tipping Weight | 37456.6 lb (16990 kg) |
| Turning Radius | 19.1 ft in (5800 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 23.5x25 |
Transmission
| Transmission Type | countershaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.3 mph (35.8 km/h) |
| Max Speed - Reverse | 15.4 mph (24.7 km/h) |
Hydraulic System
| Relief Valve Setting | 2840 psi (19581.1 kPa) |
| Pump Flow Capacity | 97.8 gal/min (370 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.6 sec |
| Pump Type | vane type |
