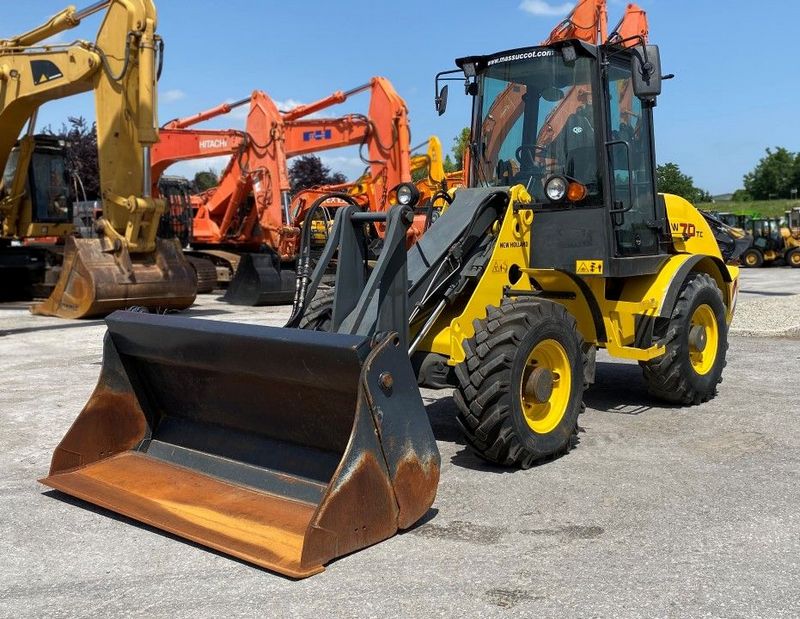

New Holland W70TC
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.54 ft in (2600 mm) |
| Bucket Width | 6.73 ft in (2050 mm) |
| Bucket Capacity - Heaped | 1.18 yd3 (0.9 m3) |
Dimensions
| Ground Clearance | 1.09 ft in (330 mm) |
| Length With Bucket On Ground | 18.38 ft in (5600 mm) |
| Width Over Tires | 6.27 ft in (1910 mm) |
| Height To Top Of Cab | 9.19 ft in (2800 mm) |
| Wheelbase | 7.71 ft in (2350 mm) |
| Hinge Pin - Max Height | 11.16 ft in (3400 mm) |
| Reach At Max Lift And Dump | 2.76 ft in (840 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4M2011 |
| Net Power | 61 hp (45.5 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 190 cu in (3.2 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 11122.4 lb (5045 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 17.7 gal (67 L) |
| Static Tipping Weight | 7716.2 lb (3500 kg) |
| Turning Radius | 15.1 ft in (4600 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 365/80 R20 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3916.1 psi (27000 kPa) |
| Pump Flow Capacity | 17.7 gal/min (67 L/min) |
| Pump Type | Gear |
