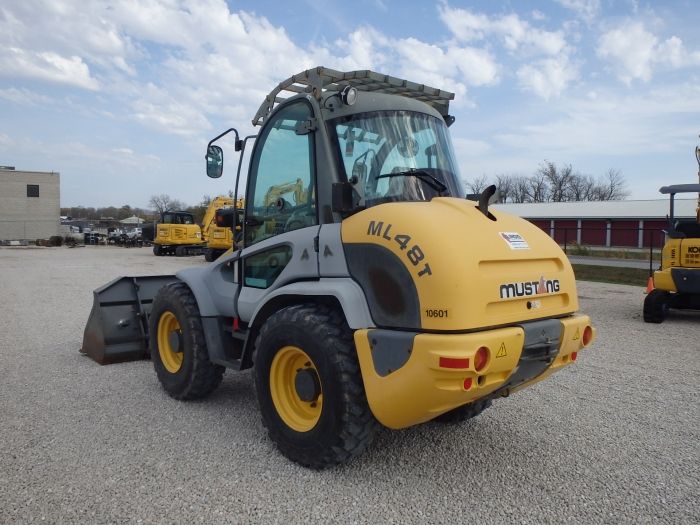

Mustang ML48T
Browse All Mustang or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.83 ft in (2997 mm) |
| Bucket Capacity - Heaped | 1.83 yd3 (1.4 m3) |
| Bucket Capacity - Struck | 1.12 yd3 (0.85 m3) |
| Bucket Width | 6.25 ft in (1905 mm) |
| Breakout Force | 11016 lb (49 kN) |
Dimensions
| Ground Clearance | 1.09 ft in (330 mm) |
| Length With Bucket On Ground | 18.08 ft in (5512 mm) |
| Width Over Tires | 5.59 ft in (1702 mm) |
| Height To Top Of Cab | 8.58 ft in (2616 mm) |
| Wheelbase | 6.33 ft in (1930 mm) |
| Hinge Pin - Max Height | 11.83 ft in (3607 mm) |
| Reach At Max Lift And Dump | 2.5 ft in (762 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | F4M2011 |
| Net Power | 59 hp (43.9 kw) |
| Gross Power | 65 hp (48.4 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 190 cu in (3.1 L) |
| Torque Rise | 40 % |
Operational
| Operating Weight | 11684 lb (5300 kg) |
| Fuel Capacity | 21.1 gal (79.8 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Static Tipping Weight | 6746 lb (30620 kg) |
| Turning Radius | 13.4 ft in (4064 mm) |
| Rear Axle Oscillation | 40 degrees |
| Tire Size | 12.5 - 20 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 12.4 mph (20 km/h) |
| Max Speed - Reverse | 12.4 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3046 psi (21001.5 kPa) |
| Pump Flow Capacity | 19.5 gal/min (74 L/min) |
