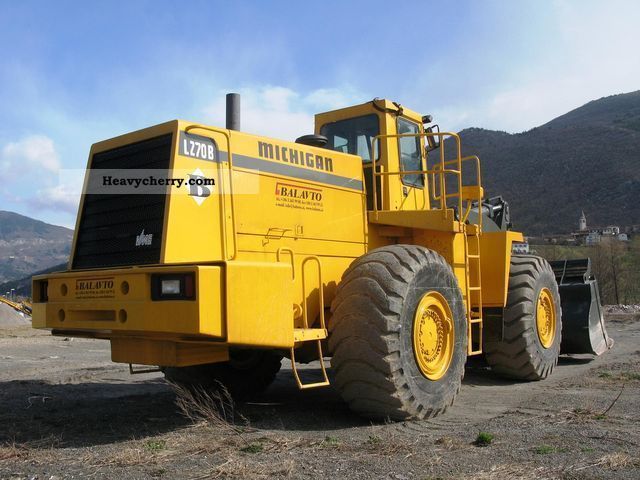

Michigan L270B
Browse All Michigan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 12.26 ft in (3734 mm) |
| Bucket Capacity - Heaped | 7 yd3 (5.35 m3) |
| Bucket Capacity - Struck | 5.89 yd3 (4.5 m3) |
| Bucket Width | 12.34 ft in (3759 mm) |
| Breakout Force | 80000 lb (355.8 kN) |
Dimensions
| Ground Clearance | 1.84 ft in (559 mm) |
| Length With Bucket On Ground | 33.59 ft in (10236 mm) |
| Width Over Tires | 11.5 ft in (3505 mm) |
| Height To Top Of Cab | 12.84 ft in (3912 mm) |
| Wheelbase | 12.34 ft in (3759 mm) |
| Hinge Pin - Max Height | 16.42 ft in (5004 mm) |
| Reach At Max Lift And Dump | 5.59 ft in (1702 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | KT-19C |
| Net Power | 360 hp (268.5 kw) |
| Gross Power | 400 hp (298.3 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1350 lb ft (1830.4 Nm) |
| Displacement | 1150 cu in (18.9 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 91070 lb (41308.7 kg) |
| Fuel Capacity | 188 gal (711.6 L) |
| Hydraulic System Fluid Capacity | 120 gal (454.2 L) |
| Engine Oil Fluid Capacity | 11 gal (41.6 L) |
| Cooling System Fluid Capacity | 26 gal (98.4 L) |
| Transmission Fluid Capacity | 24.1 gal (90.9 L) |
| Front Axle/Diff Fluid Capacity | 16 gal (60.5 L) |
| Rear Axle/Diff Fluid Capacity | 16 gal (60.5 L) |
| Static Tipping Weight | 56680.9 lb (25710 kg) |
| Turning Radius | 28.1 ft in (8560 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 29.5-29 (28PR) L-4 |
Transmission
| Transmission Type | Clark countershaft type powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.7 km/h) |
| Max Speed - Reverse | 21.5 mph (34.7 km/h) |
Hydraulic System
| Relief Valve Setting | 2750 psi (18960.6 kPa) |
| Pump Flow Capacity | 175 gal/min (662.5 L/min) |
| Raise Time | 8.6 sec |
| Dump Time | 3 sec |
| Lower Time | 5 sec |
| Pump Type | gear type |
