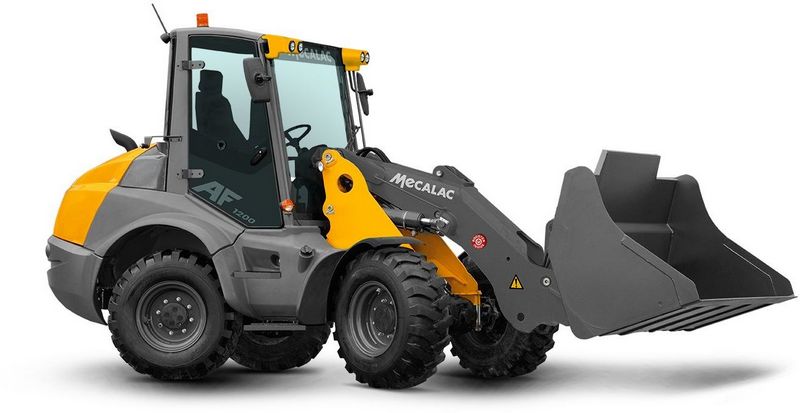

Mecalac AF 1200
Browse All Mecalac or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 4900 daN |
| Bucket Capacity - Heaped | 2.62 yd3 (2 m3) |
| Dumping Angle, Top | 45 degrees |
| Lifting Force | 6600 daN |
| Payload On Forks, Max. Turned, Frontal | 6327.27 lb (2870 kg) |
| Thrust Force | 4650 daN |
| Tipping Load Standard Bucket | 9479.88 lb (4300 kg) |
Dimensions
| Ground Clearance | 1.38 ft in (420 mm) |
| Length With Bucket On Ground | 19.95 ft in (6080 mm) |
| Width Over Tires | 6.76 ft in (2060 mm) |
| Height To Top Of Cab | 9.32 ft in (2840 mm) |
| Wheelbase | 6.85 ft in (2085 mm) |
| Hinge Pin - Max Height | 11.98 ft in (3650 mm) |
| Reach At Max Lift And Dump | 2.43 ft in (740 mm) |
Engine
| Engine Model | Deutz TCD 2.9 L4 |
| Net Power | 75 hp (56 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 300 Nm |
| Battery | 95 Ah |
| Torque Measured @ | 1600 rpm |
| Aspiration | Low-noise, water-cooled, turbo diesel engine |
Operational
| Operating Weight | 13227.8 lb (6000 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 35.4 gal (134 L) |
| Front Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Rear Axle/Diff Fluid Capacity | 3.2 gal (12 L) |
| Steering Angle | 35 degrees |
| Turning Radius | 12.2 ft in (3700 mm) |
| Operating Voltage | 12 V |
| Rear Axle Oscillation | 10 degrees |
| Tire Size | 16/17-20 |
Transmission
| Max Speed - Forward | 12.5 mph (20 km/h) |
Hydraulic System
| Pump Flow Capacity | 22.2 gal/min (84 L/min) |
| Pump Type | Single circuit hydraulics with central gear pump |
