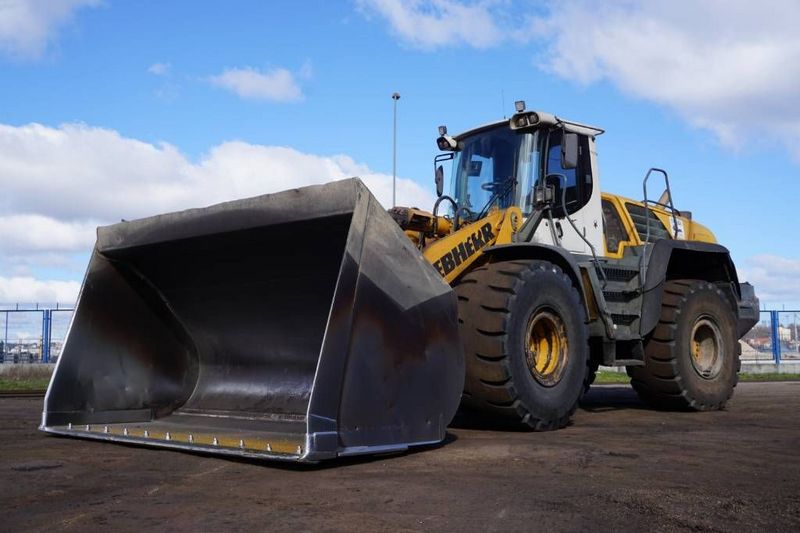

Liebherr L576 2plus2
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.46 ft in (3187 mm) |
| Breakout Force | _ - (190 kN) |
| Bucket Capacity - Heaped | 5.89 yd3 (4.5 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
Dimensions
| Ground Clearance | 1.86 ft in (565 mm) |
| Length With Bucket On Ground | 29.51 ft in (8992 mm) |
| Height To Top Of Cab | 11.65 ft in (3550 mm) |
| Wheelbase | 11.75 ft in (3580 mm) |
| Hinge Pin - Max Height | 14.31 ft in (4360 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2245 |
| Engine Model | D 936 L A6 |
| Gross Power | 268.3 hp (200 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 973.6 lb ft (1320 Nm) |
| Displacement | 642 cu in (10.6 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbo-charged |
Operational
| Operating Weight | 53484.2 lb (24260 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Hydraulic System Fluid Capacity | 68.7 gal (260 L) |
| Engine Oil Fluid Capacity | 11.4 gal (43 L) |
| Cooling System Fluid Capacity | 13.8 gal (52 L) |
| Front Axle/Diff Fluid Capacity | 13.5 gal (51 L) |
| Rear Axle/Diff Fluid Capacity | 13.5 gal (51 L) |
| Static Tipping Weight | lb (19570 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 26.5R25 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
Hydraulic System
| Relief Valve Setting | 5076.4 psi (35000 kPa) |
| Pump Flow Capacity | 76.7 gal/min (290 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 2 sec |
| Lower Time | 3.5 sec |
| Pump Type | Load-sensing swash plate type variable flow pump with output and flow control and pressure cut-off in the control block |
