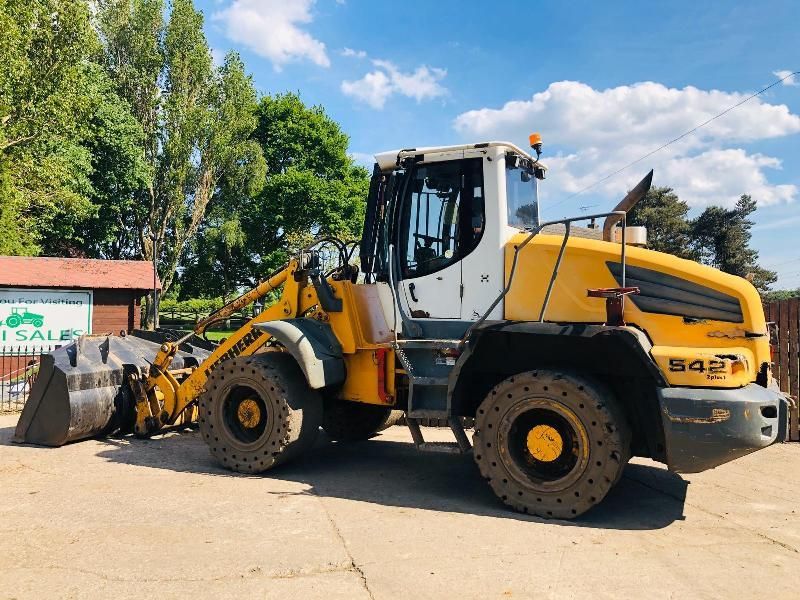

Liebherr L542 2plus1
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.34 ft in (2845 mm) |
| Breakout Force | _ - (105 kN) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Width | 8.21 ft in (2500 mm) |
Dimensions
| Ground Clearance | 1.61 ft in (490 mm) |
| Length With Bucket On Ground | 23.71 ft in (7225 mm) |
| Height To Top Of Cab | 10.67 ft in (3250 mm) |
| Wheelbase | 9.77 ft in (2975 mm) |
| Hinge Pin - Max Height | 12.9 ft in (3930 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D 934 S AG |
| Gross Power | 140.9 hp (105 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 568 lb ft (770 Nm) |
| Displacement | 388.2 cu in (6.4 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbo-charged |
Operational
| Operating Weight | 28750 lb (13040.8 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Engine Oil Fluid Capacity | 7.7 gal (29 L) |
| Front Axle/Diff Fluid Capacity | 4.4 gal (16.3 L) |
| Rear Axle/Diff Fluid Capacity | 4 gal (15 L) |
| Static Tipping Weight | 21525 lb (11040 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 12 degrees |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
Hydraulic System
| Relief Valve Setting | 4786.3 psi (33000 kPa) |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.6 sec |
| Lower Time | 4 sec |
| Pump Type | Load-sensing variable axial piston pump with output and flow control, and pressure cut-off in the control block |
