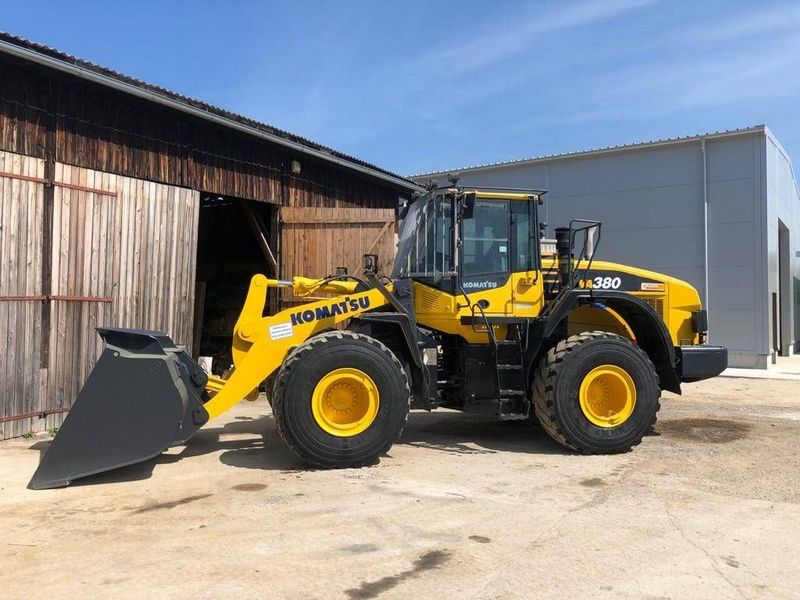

Komatsu WA380-7
Browse All Komatsu or Wheel Loader Models
Contents:
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D107E-2 |
| Net Power | 142 hp (105.9 kw) |
| Gross Power | 143 hp (106.7 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 408.3 cu in (6.7 L) |
| Aspiration | TURBOCHARGED |
Operational
| Fuel Capacity | 79.3 gal (300.2 L) |
| Hydraulic System Fluid Capacity | 37.5 gal (142 L) |
| Engine Oil Fluid Capacity | 6.1 gal (23.1 L) |
| Cooling System Fluid Capacity | 14.4 gal (54.6 L) |
| Transmission Fluid Capacity | 14.3 gal (54.2 L) |
| Front Axle/Diff Fluid Capacity | 10.6 gal (40.2 L) |
| Rear Axle/Diff Fluid Capacity | 10.6 gal (40.2 L) |
| Turning Radius | 20.9 ft in (6370.4 mm) |
| Tire Size | 23.5-25 |
Transmission
| Transmission Type | FULL POWERSHIFT |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 40 mph (64.4 km/h) |
| Max Speed - Reverse | 40 mph (64.4 km/h) |
Hydraulic System
| Relief Valve Setting | 3555 psi (24510.9 kPa) |
| Pump Flow Capacity | 36.2 gal/min (137.1 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.8 sec |
| Lower Time | 3.3 sec |
| Pump Type | PISTON PUMP |
