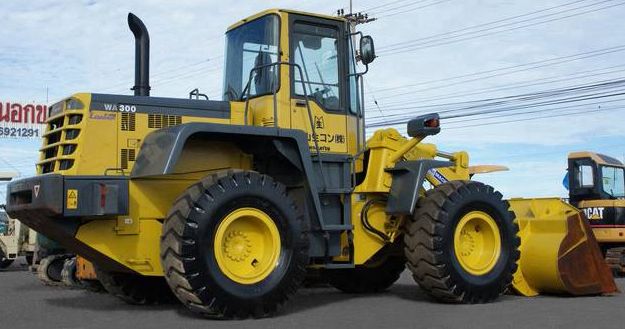

Komatsu WA300L-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.52 ft in (2900 mm) |
| Bucket Capacity - Heaped | 3.27 yd3 (2.5 m3) |
| Bucket Capacity - Struck | 2.75 yd3 (2.1 m3) |
| Bucket Width | 8.99 ft in (2740 mm) |
| Breakout Force | 28770 lb (127.98 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 24.09 ft in (7340 mm) |
| Width Over Tires | 8.49 ft in (2585 mm) |
| Height To Top Of Cab | 10.52 ft in (3205 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Hinge Pin - Max Height | 12.75 ft in (3885 mm) |
| Reach At Max Lift And Dump | 3.24 ft in (985 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D102E |
| Gross Power | 152.9 hp (114 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 358.9 cu in (5.9 L) |
Operational
| Operating Weight | 29189.3 lb (13240 kg) |
| Fuel Capacity | 49.7 gal (188 L) |
| Static Tipping Weight | 24493.4 lb (11110 kg) |
| Tire Size | 20.5-25-12PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.2 mph (34 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
