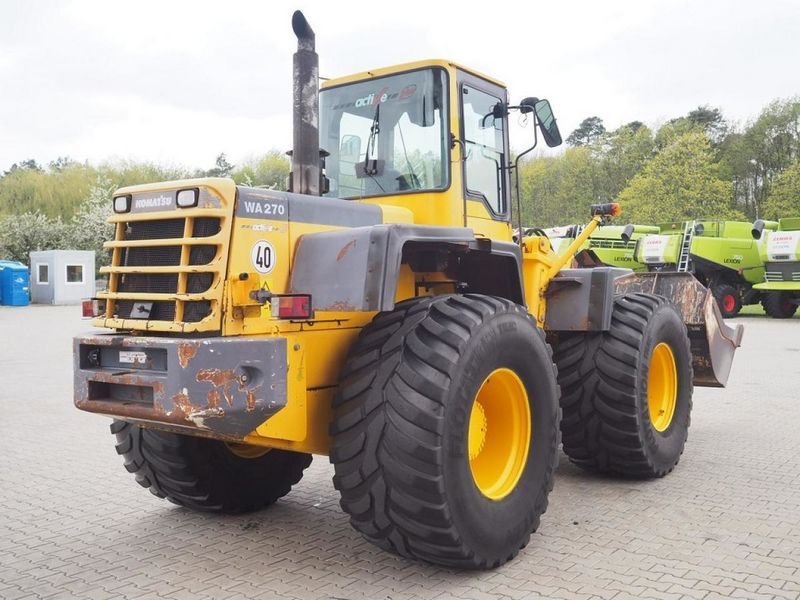

Komatsu WA270PT-3 Active
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.29 ft in (2525 mm) |
| Bucket Capacity - Heaped | 2.62 yd3 (2 m3) |
| Bucket Width | 8.21 ft in (2500 mm) |
| Breakout Force | 21581.66 lb (96 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 23.79 ft in (7250 mm) |
| Width Over Tires | 8.01 ft in (2440 mm) |
| Height To Top Of Cab | 10.67 ft in (3250 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 12.6 ft in (3838 mm) |
| Reach At Max Lift And Dump | 4.35 ft in (1324 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D102 E1 |
| Gross Power | 141 hp (105.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 417.5 lb ft (566 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 27998.8 lb (12700 kg) |
| Fuel Capacity | 48.9 gal (185 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Engine Oil Fluid Capacity | 4.3 gal (16 L) |
| Cooling System Fluid Capacity | 14.8 gal (56 L) |
| Transmission Fluid Capacity | 4.5 gal (16.7 L) |
| Front Axle/Diff Fluid Capacity | 6.8 gal (25.5 L) |
| Rear Axle/Diff Fluid Capacity | 6.8 gal (25.5 L) |
| Static Tipping Weight | 18078 lb (8200 kg) |
| Turning Radius | 17.2 ft in (5240 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5 R 25 |
Transmission
| Transmission Type | fully automatic 4-speed full powershift with 'kickdown' |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 25 mph (40.2 km/h) |
| Max Speed - Reverse | 16.2 mph (26 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 46.3 gal/min (175 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1.5 sec |
| Lower Time | 2.7 sec |
