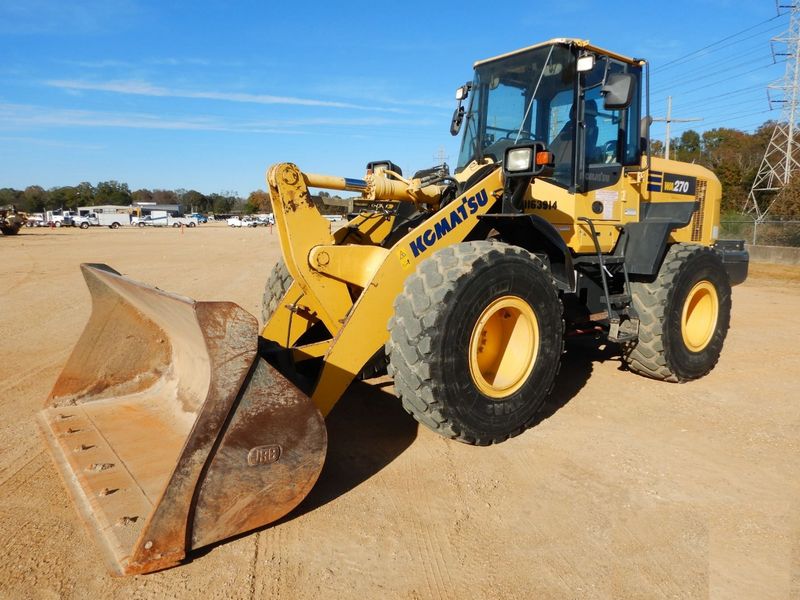

Komatsu WA270-7
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.77 ft in (2975 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Capacity - Struck | 2.75 yd3 (2.1 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
| Breakout Force | 29449.97 lb (131 kN) |
Dimensions
| Ground Clearance | 1.53 ft in (465 mm) |
| Length With Bucket On Ground | 23.97 ft in (7305 mm) |
| Width Over Tires | 8.22 ft in (2505 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 13.01 ft in (3965 mm) |
| Reach At Max Lift And Dump | 2.66 ft in (810 mm) |
Engine
| Engine Model | SAA6D107E-2 |
| Net Power | 148.9 hp (111 kw) |
| Gross Power | 154.3 hp (115 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 408.3 cu in (6.7 L) |
| Aspiration | Turbo-charged |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Operational
| Fuel Capacity | 49.2 gal (186 L) |
| Hydraulic System Fluid Capacity | 20.7 gal (78 L) |
| Engine Oil Fluid Capacity | 6.1 gal (23 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Front Axle/Diff Fluid Capacity | 4.9 gal (18.5 L) |
| Rear Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.6 mph (38 km/h) |
| Max Speed - Reverse | 23.6 mph (38 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi |
| Pump Flow Capacity | 39.7 gal/min (150 L/min) |
| Raise Time | 5.7 sec |
| Dump Time | 2 sec |
| Lower Time | 3.2 sec |
| Pump Type | Hydraulic |
