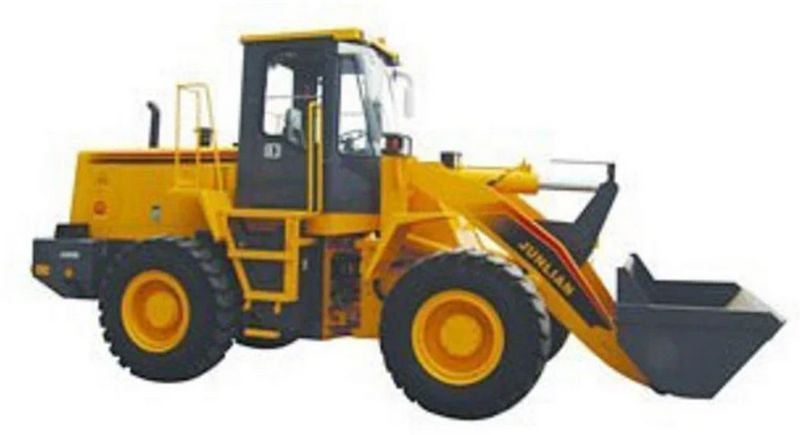

Junlian JL835
Browse All Junlian or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.67 ft in (3250 mm) |
| Bucket Capacity - Heaped | 2.23 yd3 (1.7 m3) |
| Bucket Width | 8.04 ft in (2450 mm) |
| Breakout Force | _ - (120.6 kN) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 22.94 ft in (6990 mm) |
| Width Over Tires | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 10.57 ft in (3220 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Reach At Max Lift And Dump | 3.4 ft in (1036 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | TD226B-6 |
| Net Power | 123.4 hp (92 kw) |
| Max Torque | 341.5 lb ft (463 Nm) |
Operational
| Operating Weight | 20000 lb (9071.9 kg) |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
Hydraulic System
| Relief Valve Setting | 2277.1 psi (15700 kPa) |
| Raise Time | 6 sec |
