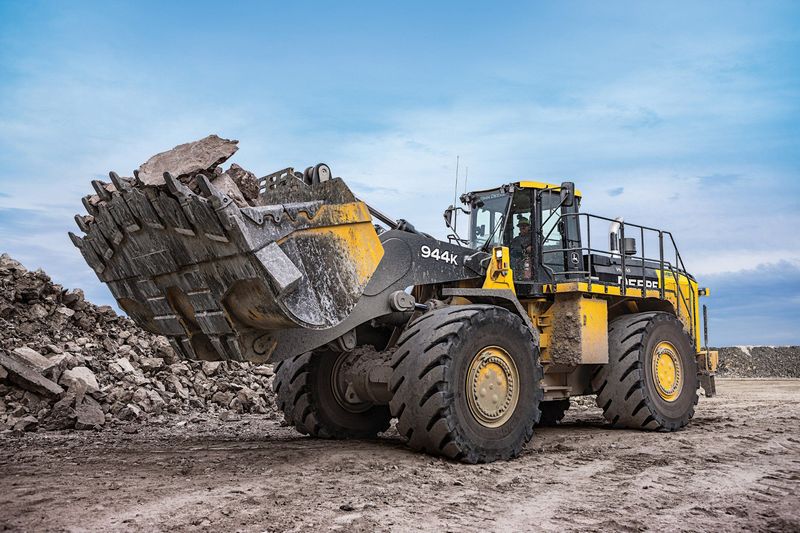

John Deere 944K
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Breakout - Bucket | 46896 (103388) kgf (lbf) |
| Bucket Capacity - Smallest | 8.51 yd3 (6.5 m3) |
| Largest Bucket Capacity | 10.01 yd3 (7.65 m3) |
Dimensions
| Ground Clearance | 22.92 in (582 mm) |
| Length With Bucket On Ground | 38.36 ft in (11690 mm) |
| Width Over Tires | 12.24 ft in (3729 mm) |
| Wheelbase | 14.77 ft in (4500 mm) |
| Hinge Pin - Max Height | 17.56 ft in (5350 mm) |
| Reach At Max Lift And Dump | 9.42 ft in (2870 mm) |
| Turning Circle | 58.6 ft in (17860 mm) |
| Height Over Cab | 13.62 ft in (4150 mm) |
Engine
| Pump | Axial Piston Pump |
| Engine Output-Net | 536.5 hp (400 kw) |
| Transmission Type | A/C Electric |
| Engine Make | John Deere |
| Engine Model | PowerTech PSX 6135 |
| Torque | 1866.1 lb ft (2530 Nm) |
| Rated Speed | 1600 rpm |
| Displacement | 823.9 cu in (13.5 L) |
| Torque Rise | 23 % |
| System Voltage | 24 V |
| Emission Level | Interim Tier 4 |
| Alternator | 150 amps |
Driveline
| Ride Control System | Optional |
| Service Brake Type | Wet Multi Disc |
| Parking Brake Type | Wet Multi Disc |
| Service Brake Actuation | Hydraulic |
| Tire Size - Standard | 35 / 65 R33 |
| Service Brake - Location | All Wheels |
Capacities
| Hydraulic Tank | 99.9 gal (378 L) |
| Heaped Capacity | 10.1 yd3 (7.7 m3) |
| Transmission | 9 gal (34 L) |
Operational
| Operating Weight | 117947.4 lb (53500 kg) |
| Fuel Capacity | 201.1 gal (761 L) |
Transmission
| Pump Flow | 100.2 gal/min (379 L/min) |
| System Pressure | 350 psi (2413.2 kPa) |
