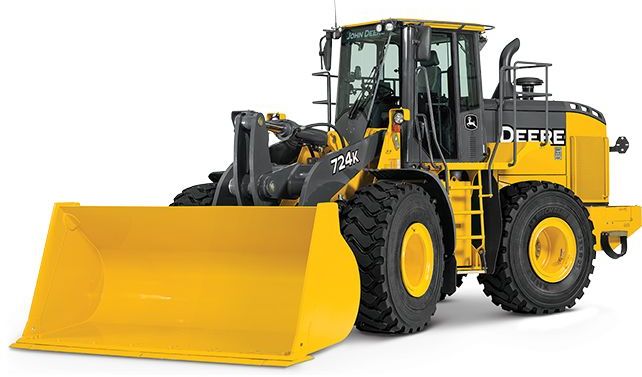

John Deere 724K High-Lift
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.93 ft in (3330 mm) |
| Bucket Capacity - Heaped | 4.19 yd3 (3.2 m3) |
| Bucket Capacity - Struck | 3.67 yd3 (2.8 m3) |
| Bucket Width | 9.98 ft in (3040 mm) |
| Breakout Force | 30610 lb (136.17 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 28.58 ft in (8710 mm) |
| Width Over Tires | 9.45 ft in (2880 mm) |
| Height To Top Of Cab | 11.09 ft in (3380 mm) |
| Wheelbase | 10.7 ft in (3260 mm) |
| Hinge Pin - Max Height | 14.64 ft in (4460 mm) |
| Reach At Max Lift And Dump | 3.88 ft in (1180 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6090H, Tier III certified |
| Net Power | 264 hp (196.9 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 852 lb ft (1155.2 Nm) |
| Displacement | 548 cu in (9 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged charge air cooled |
| Torque Rise | 36 % |
Operational
| Operating Weight | 42483.1 lb (19270 kg) |
| Fuel Capacity | 93 gal (352 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Engine Oil Fluid Capacity | 7.4 gal (28 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Transmission Fluid Capacity | 6.4 gal (24 L) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Static Tipping Weight | 29489.1 lb (13376 kg) |
| Turning Radius | 18.6 ft in (5640 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 23.5 R25 |
Transmission
| Transmission Type | Countershaft, powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.2 mph (35.6 km/h) |
| Max Speed - Reverse | 15.1 mph (24.2 km/h) |
Hydraulic System
| Relief Valve Setting | 3650 psi (25165.9 kPa) |
| Pump Flow Capacity | 81.9 gal/min (310 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
| Pump Type | Variable axial piston |
