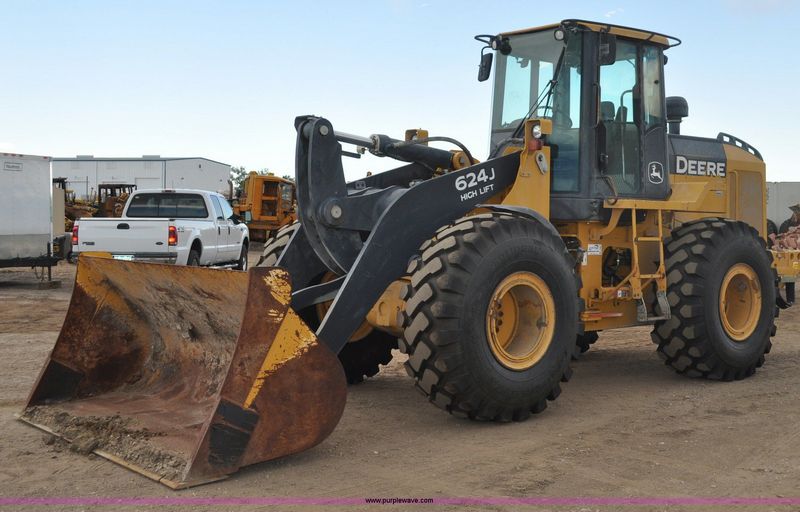

John Deere 624J Waste Handler High-Lift
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.83 ft in (3310 mm) |
| Bucket Capacity - Heaped | 4 yd3 (3.1 m3) |
| Bucket Capacity - Struck | 3.5 yd3 (2.7 m3) |
| Bucket Width | 9.58 ft in (2919.99 mm) |
| Breakout Force | 23137 lb (102.9 kN) |
Dimensions
| Ground Clearance | 1.56 ft in (470 mm) |
| Length With Bucket On Ground | 24.75 ft in (7543.8 mm) |
| Width Over Tires | 8.42 ft in (2573 mm) |
| Height To Top Of Cab | 11.17 ft in (3400 mm) |
| Wheelbase | 9.92 ft in (3020 mm) |
| Hinge Pin - Max Height | 14.33 ft in (4370 mm) |
| Reach At Max Lift And Dump | 5.92 ft in (1810 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Net Power | 198 hp (147.7 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 617 lb ft (837 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | turbocharged |
| Torque Rise | 55 % |
Operational
| Operating Weight | 39715 lb (18015 kg) |
| Fuel Capacity | 93 gal (352 L) |
| Hydraulic System Fluid Capacity | 32 gal (121 L) |
| Engine Oil Fluid Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 7.2 gal (27 L) |
| Transmission Fluid Capacity | 6.1 gal (23 L) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Static Tipping Weight | 24754 lb (11228 kg) |
| Turning Radius | 17 ft in (5180 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 16 degrees |
| Tire Size | 20.5 -25 |
Transmission
| Transmission Type | Automactic Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 15.2 mph (24.5 km/h) |
| Max Speed - Reverse | 16 mph (25.8 km/h) |
Hydraulic System
| Relief Valve Setting | 3675 psi (25320 kPa) |
| Pump Flow Capacity | 60 gal/min (227 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.3 sec |
| Lower Time | 2.7 sec |
| Pump Type | Variable axial piston |
