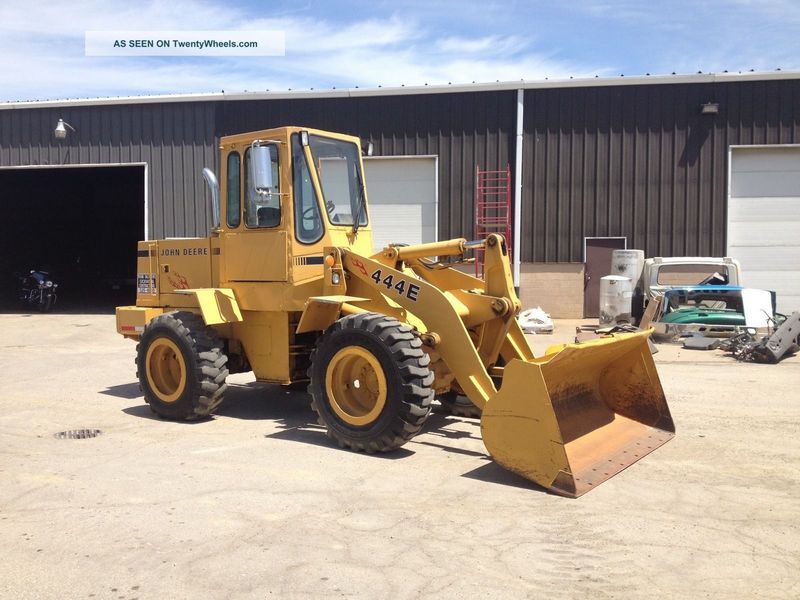

John Deere 444E
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.26 ft in (2820 mm) |
| Bucket Capacity - Heaped | 1.75 yd3 (1.34 m3) |
| Bucket Capacity - Struck | 1.53 yd3 (1.17 m3) |
| Bucket Width | 7.94 ft in (2420 mm) |
| Breakout Force | 18298 lb (81.4 kN) |
Dimensions
| Ground Clearance | 1.42 ft in (430 mm) |
| Length With Bucket On Ground | 20.81 ft in (6340 mm) |
| Width Over Tires | 7.37 ft in (2244 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Wheelbase | 8.7 ft in (2650 mm) |
| Hinge Pin - Max Height | 11.75 ft in (3580 mm) |
| Reach At Max Lift And Dump | 2.79 ft in (848 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4276T |
| Net Power | 95 hp (70.9 kw) |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 284 lb ft (385.1 Nm) |
| Displacement | 276 cu in (4.6 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 18871 lb (8559.8 kg) |
| Fuel Capacity | 37 gal (140.1 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Engine Oil Fluid Capacity | 3.5 gal (13 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Transmission Fluid Capacity | 2 gal (7.5 L) |
| Front Axle/Diff Fluid Capacity | 4.3 gal (16 L) |
| Rear Axle/Diff Fluid Capacity | 4.3 gal (16 L) |
| Static Tipping Weight | 14487 lb (6571.2 kg) |
| Turning Radius | 15 ft in (4570 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 15.5-25 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 20 mph (32.2 km/h) |
| Max Speed - Reverse | 20 mph (32.2 km/h) |
Hydraulic System
| Relief Valve Setting | 2987 psi (20594.7 kPa) |
| Pump Flow Capacity | 38.8 gal/min (146.9 L/min) |
| Raise Time | 5.3 sec |
| Dump Time | 1 sec |
| Lower Time | 3.1 sec |
| Pump Type | Gear |
