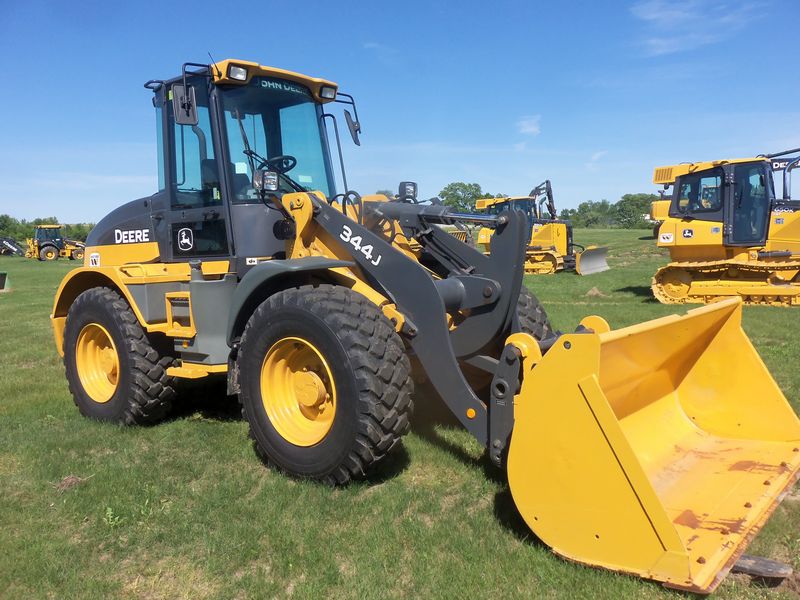

John Deere 344J
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.33 ft in (2850 mm) |
| Bucket Capacity - Heaped | 2 yd3 (1.5 m3) |
| Bucket Capacity - Struck | 1.6 yd3 (1.2 m3) |
| Bucket Width | 7.88 ft in (2400 mm) |
| Breakout Force | 17310 lb (77 kN) |
Dimensions
| Ground Clearance | 1.25 ft in (385 mm) |
| Length With Bucket On Ground | 20.08 ft in (6130 mm) |
| Width Over Tires | 45.3 ft in (1150 mm) |
| Height To Top Of Cab | 9.92 ft in (3023 mm) |
| Wheelbase | 8.5 ft in (2600 mm) |
| Hinge Pin - Max Height | 12 ft in (3660 mm) |
| Reach At Max Lift And Dump | 2.72 ft in (830 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Net Power | 98 hp (73 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 291 lb ft (395 Nm) |
| Displacement | 276 cu in (4.5 L) |
| Torque Measured @ | 1400 rpm |
| Torque Rise | 36 % |
Operational
| Operating Weight | 18408 lb (8350 kg) |
| Fuel Capacity | 42 gal (159 L) |
| Hydraulic System Fluid Capacity | 26 gal (98 L) |
| Engine Oil Fluid Capacity | 3.5 gal (13 L) |
| Cooling System Fluid Capacity | 7.1 gal (26.5 L) |
| Front Axle/Diff Fluid Capacity | 2.5 gal (9.3 L) |
| Rear Axle/Diff Fluid Capacity | 2.3 gal (8.7 L) |
| Static Tipping Weight | 13668 lb (6200 kg) |
| Turning Radius | 166 ft in (4205 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 17.5R25 |
Transmission
| Transmission Type | Hydraulic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.6 mph (29.9 km/h) |
| Max Speed - Reverse | 18.6 mph (29.9 km/h) |
Hydraulic System
| Relief Valve Setting | 3335 psi (22980 kPa) |
| Pump Flow Capacity | 30 gal/min (114 L/min) |
| Raise Time | 4.4 sec |
| Dump Time | 1.5 sec |
| Lower Time | 4 sec |
| Pump Type | Gear |
