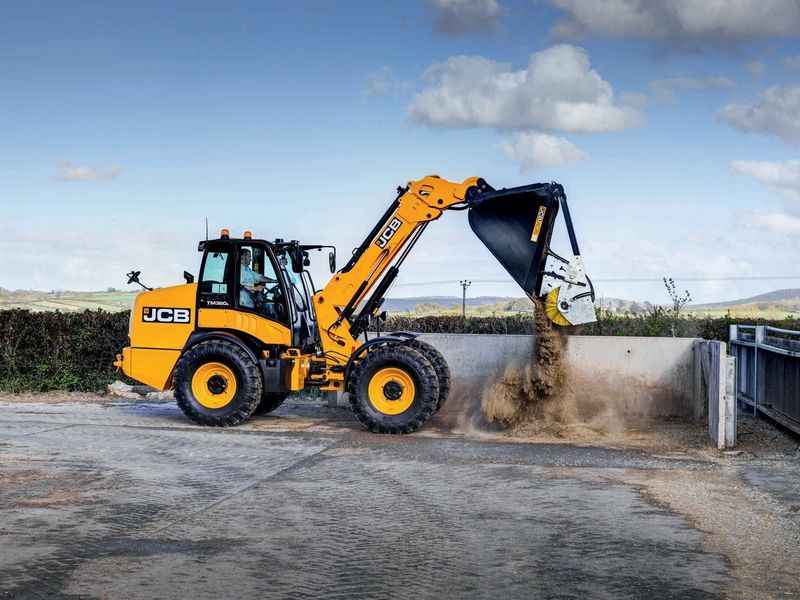

JCB TM320
Browse All JCB or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 1.55 ft in (472 mm) |
| Length With Bucket On Ground | 20.75 ft in (6322 mm) |
| Width Over Tires | 7.71 ft in (2350 mm) |
| Height To Top Of Cab | 8.87 ft in (2703 mm) |
| Wheelbase | 8.37 ft in (2550 mm) |
| Hinge Pin - Max Height | 17.61 ft in (5367 mm) |
| Center Of Front Axle To Counterweight (Pusher) | 7.04 ft in (2143 mm) |
| Height To Top Of Boom Pivot | 72.25 in (1835 mm) |
| Overall Length | 20.75 ft in (6322 mm) |
| Turning Radius - Inside | 6.57 ft in (2001 mm) |
| Wheel Track | 73.63 in (1870 mm) |
| Dump Reach | 36.74 in (933 mm) |
| Dump Height | 14.8 ft in (4511 mm) |
Engine
| Capacity | 1.2 gal (4.4 L) |
| Number Of Cylinders | 4 |
| Engine Make | JCB |
| Engine Model | EcoMAX |
| Net Power | 115 hp (85.8 kw) |
| Gross Power | 125 hp (93.3 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 550 Nm |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged-charge cooled |
| Bore | 4.1 in (103 mm) |
| Stroke | 5.2 in (132 mm) |
Capacities
| Hydraulic Oil Tank | 25.7 gal (97 L) |
| Fuel Tank | 42.3 gal (160 L) |
| Def Tank | 7.7 gal (29 L) |
| Engine Oil | 3.7 gal (14 L) |
| Dropbox | 0.4 gal (1.3 L) |
Operational
| Operating Weight | 17989.8 lb (8160 kg) |
Electrical
| Voltage | 12 V |
| Alternator | 150 Amp Hour |
| Battery Capacity | 120 Amp Hour |
Transmission
| Make | JCB |
| Model | PS760 - 6 Speed |
| Transmission Type | Powershift |
| Max Speed - Forward | 24.9 mph (40 km/h) |
Weights
| Front Axle Weight | 6018.7 lb (2730 kg) |
| Rear Axle Weight | 12059.3 lb (5470 kg) |
Hydraulic System
| Max Operating Pressure | 230 bar |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Pump Type | Variable displacement piston pump |
