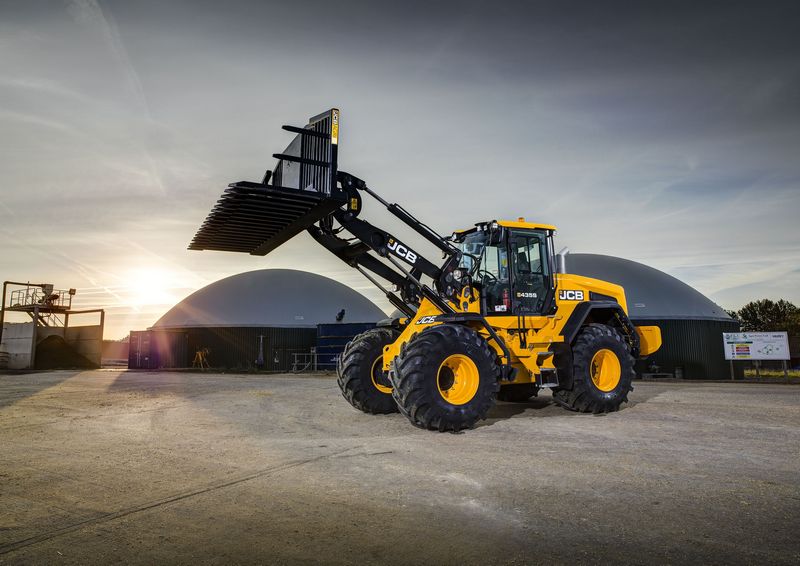

JCB 435S HL
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 11.14 ft in (3393 mm) |
| Bucket Capacity - Heaped | 2.49 yd3 (1.9 m3) |
| Bucket Capacity - Struck | 2.12 yd3 (1.62 m3) |
| Bucket Width | 8.36 ft in (2548 mm) |
| Breakout Force | 31023.64 lb (138 kN) |
Dimensions
| Ground Clearance | 1.62 ft in (491 mm) |
| Length With Bucket On Ground | 24.69 ft in (7524 mm) |
| Width Over Tires | 9.72 ft in (2961 mm) |
| Height To Top Of Cab | 12.28 ft in (3742 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Hinge Pin - Max Height | 14.25 ft in (4342 mm) |
| Reach At Max Lift And Dump | 3.11 ft in (946 mm) |
Engine
| Emission Tier Level | EU Stage IV, US EPA Tier 4F |
| Number Of Cylinders | 6 |
| No. Of Valves | 4 |
| Engine Model | QSB |
| Engine Type | Cummins |
| Net Power | 206 hp (153.7 kw) |
| Air Cleaner | Cyclonic pre-filter with engine fan scavenge system |
| Gross Power | 230 hp (171.6 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 945 Nm |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbo Charged |
| Fan Drive Type | Hydraulically driven cooling fan |
Operational
| Def Tank Capacity | 10.6 gal (40 L) |
| Auxiliary Fuel Tank | 105.7 gal (400 L) |
| Full Turn Tipping Load | 17357 lb (7873 kg) |
| Payload | 8679.6 lb (3937 kg) |
| Operating Weight | 31449 lb (14265 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Turning Radius | 19.8 ft in (6035 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 120 amps |
| Rear Axle Oscillation | 10.5 degrees |
| Articulation Angle | 40 degrees |
Transmission
| Transmission Type | 6 speed with lock up converter ZF 6WG210 |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 32.5 mph (52.3 km/h) |
| Max Speed - Reverse | 22.5 mph (36.1 km/h) |
Hydraulic System
| Max Operating Pressure | 250 bar |
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 34.9 gal/min (132 L/min) |
| Raise Time | 4.7 sec |
| Dump Time | 1.8 sec |
| Lower Time | 2.8 sec |
| Total Cycle | 9.3 sec |
| Pump Type | Twin variable displacement piston pumps |
