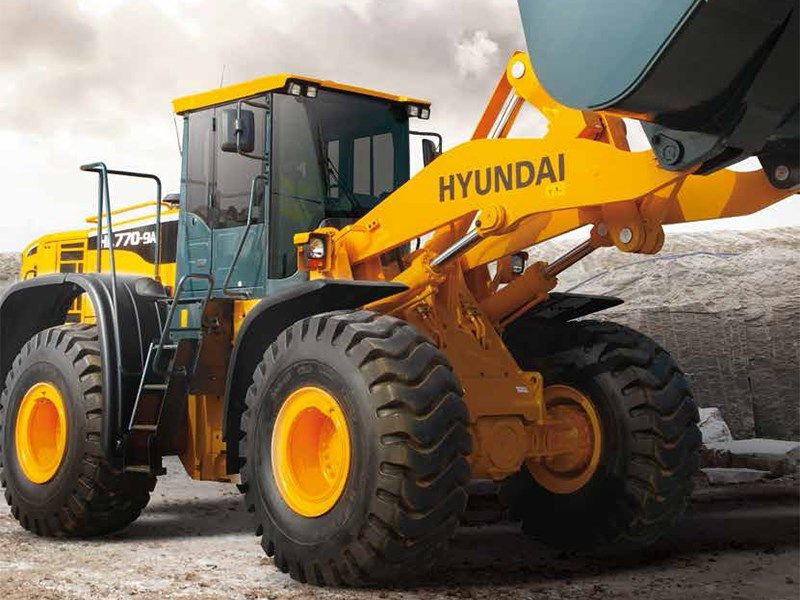

Hyundai HL770-9
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.14 ft in (3090 mm) |
| Bucket Capacity - Struck | 4.71 yd3 (3.6 m3) |
| Bucket Width | 10.18 ft in (3100 mm) |
| Bucket Capacity - Heaped | 5.5 yd3 (4.2 m3) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Length With Bucket On Ground | 28.55 ft in (8700 mm) |
| Width Over Tires | 9.77 ft in (2975 mm) |
| Height To Top Of Cab | 11.68 ft in (3560 mm) |
| Wheelbase | 11.49 ft in (3500 mm) |
| Hinge Pin - Max Height | 14.15 ft in (4310 mm) |
| Reach At Max Lift And Dump | 4.25 ft in (1295 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSL |
| Net Power | 277 hp (206.6 kw) |
| Gross Power | 280 hp (208.8 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1070 lb ft (1450.8 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 50926.8 lb (23100 kg) |
| Fuel Capacity | 120.8 gal (457 L) |
| Hydraulic System Fluid Capacity | 77.2 gal (292 L) |
| Engine Oil Fluid Capacity | 6.1 gal (23 L) |
| Cooling System Fluid Capacity | 14.8 gal (56 L) |
| Transmission Fluid Capacity | 11.4 gal (43 L) |
| Front Axle/Diff Fluid Capacity | 13.5 gal (51 L) |
| Rear Axle/Diff Fluid Capacity | 11.4 gal (43 L) |
| Static Tipping Weight | 38845.5 lb (17620 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 26.5-25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 25.5 mph (41 km/h) |
| Max Speed - Reverse | 16.8 mph (26.9 km/h) |
Hydraulic System
| Pump Flow Capacity | 90.4 gal/min (342 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 1.3 sec |
| Lower Time | 2.8 sec |
| Pump Type | Variable Axial Piston |
