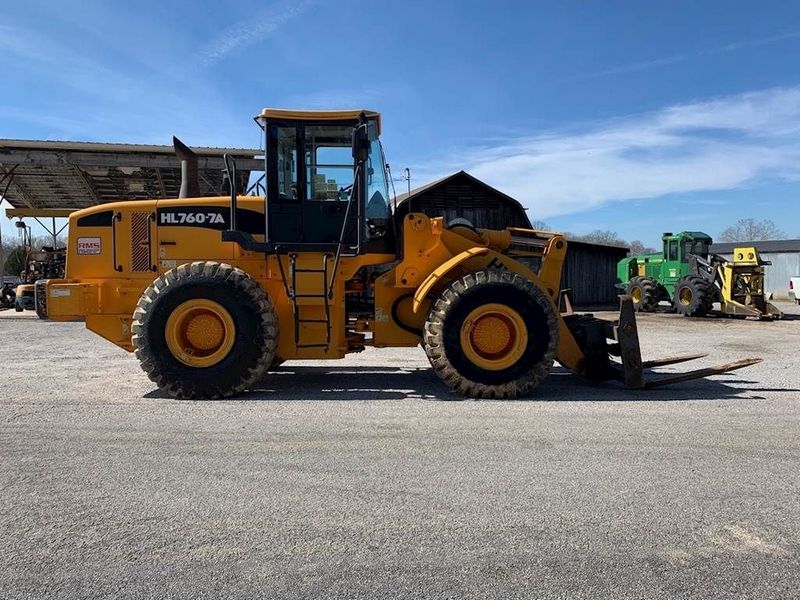

Hyundai HL760-7A
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.85 ft in (3000 mm) |
| Bucket Capacity - Heaped | 4.06 yd3 (3.1 m3) |
| Bucket Capacity - Struck | 3.54 yd3 (2.7 m3) |
| Breakout Force | 6858920.27 lb (30510 kN) |
Dimensions
| Ground Clearance | 1.38 ft in (420 mm) |
| Length With Bucket On Ground | 26.45 ft in (8060 mm) |
| Width Over Tires | 9.52 ft in (2900 mm) |
| Height To Top Of Cab | 11.29 ft in (3440 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Hinge Pin - Max Height | 13.62 ft in (4150 mm) |
| Reach At Max Lift And Dump | 3.91 ft in (1190 mm) |
Engine
| Emissions Certification | Low emission |
| Starter | 5 hp (3.7 kw) |
| Number Of Cylinders | 6 |
| Engine Make | CUMMINS |
| Engine Model | QSB6.7 |
| Compression Ratio | 17.2 : 1 |
| Net Power | 205 hp (152.9 kw) |
| Air Cleaner | Dry, dual elements |
| Torque | 700 lb ft (949.1 Nm) |
| Gross Power | 215 hp (160.4 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Operational
| Operating Weight | 39462.8 lb (17900 kg) |
| Fuel Capacity | 87.2 gal (330 L) |
| Hydraulic System Fluid Capacity | 68.7 gal (260 L) |
| Cooling System Fluid Capacity | 10.4 gal (39 L) |
| Transmission Fluid Capacity | 8.5 gal (32 L) |
| Front Axle/Diff Fluid Capacity | 10.1 gal (38 L) |
| Rear Axle/Diff Fluid Capacity | 8.2 gal (31 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 23.5-25, 20 PR, L3 |
Transmission
| Transmission Type | Full automatic power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.3 mph (34.3 km/h) |
| Max Speed - Reverse | 23.3 mph (37.5 km/h) |
Hydraulic System
| Pilot Circuit | 472 psi (3254.4 kPa) |
| Relief Valve Setting | 2990 psi |
| Pump Flow Capacity | 74 gal/min (280 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.3 sec |
| Lower Time | 3 sec |
| Pump Type | Open-centered, tandem circuit system |
Brakes
| Parking Brake | Spring-applied, hydraulically released disc brake on transmission |
| Service Brake | Hydraulically actuated, wet disc brakes actuate all 4 wheels |
| Emergency Brake | parking brake automatically applies. |
