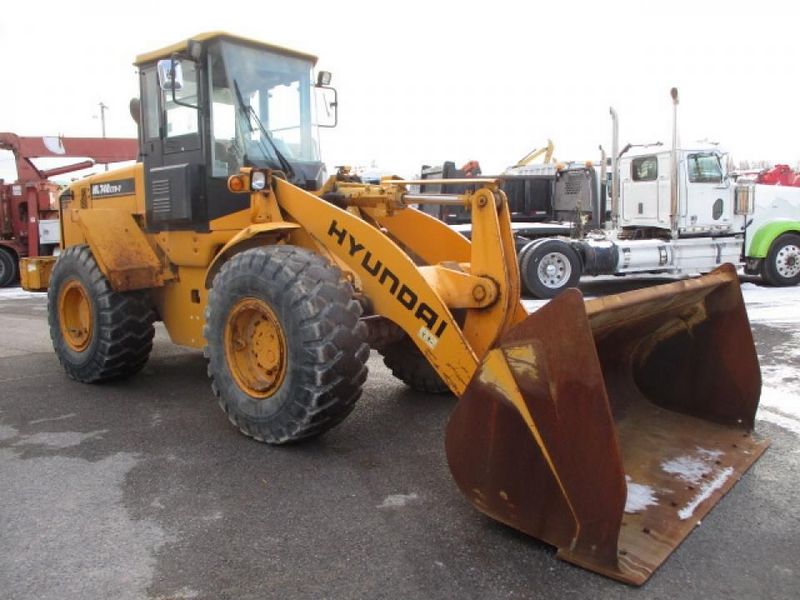

Hyundai HL740XTD-7
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.73 ft in (3270 mm) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Capacity - Struck | 3.01 yd3 (2.3 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
| Breakout Force | 25860 lb (115.04 kN) |
Dimensions
| Ground Clearance | 1.37 ft in (417 mm) |
| Length With Bucket On Ground | 25.43 ft in (7750 mm) |
| Width Over Tires | 8.37 ft in (2550 mm) |
| Height To Top Of Cab | 10.7 ft in (3260 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 13.95 ft in (4250 mm) |
| Reach At Max Lift And Dump | 3.17 ft in (965 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB5.9-C |
| Net Power | 140 hp (104.4 kw) |
| Gross Power | 133 hp (99.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 434 lb ft (588.5 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 26120 lb (11847.9 kg) |
| Fuel Capacity | 60.3 gal (228 L) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
| Engine Oil Fluid Capacity | 4.3 gal (16 L) |
| Cooling System Fluid Capacity | 9.3 gal (35 L) |
| Transmission Fluid Capacity | 6.4 gal (24 L) |
| Front Axle/Diff Fluid Capacity | 5.7 gal (21.2 L) |
| Rear Axle/Diff Fluid Capacity | 5.7 gal (21.2 L) |
| Static Tipping Weight | 18340 lb (8318.9 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5-25, 16 PR L3 |
Transmission
| Transmission Type | 3-elements, single-stage single-phase |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.8 mph (38.2 km/h) |
| Max Speed - Reverse | 15.8 mph (25.3 km/h) |
Hydraulic System
| Relief Valve Setting | 3130 psi (21580.6 kPa) |
| Pump Flow Capacity | 46.8 gal/min (177 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.8 sec |
| Pump Type | open-centered, tandem circuit system |
