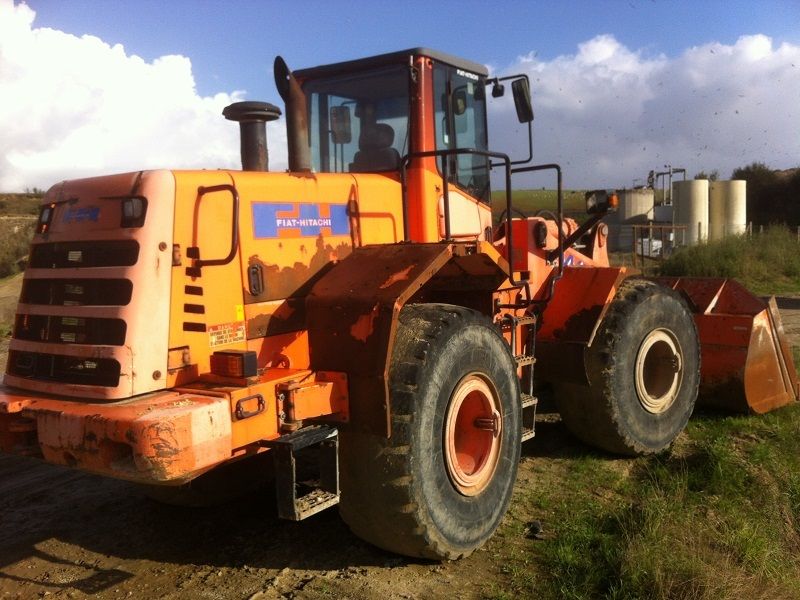

Fiat-Hitachi W230
Browse All Fiat-Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.95 ft in (2725 mm) |
| Bucket Capacity - Heaped | 5.24 yd3 (4 m3) |
| Bucket Capacity - Struck | 4.45 yd3 (3.4 m3) |
| Bucket Width | 10.06 ft in (3065 mm) |
| Breakout Force | 4114003.31 lb (18300 kN) |
Dimensions
| Ground Clearance | 1.37 ft in (415 mm) |
| Length With Bucket On Ground | 28.02 ft in (8540 mm) |
| Width Over Tires | 9.54 ft in (2905 mm) |
| Height To Top Of Cab | 11.26 ft in (3430 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Hinge Pin - Max Height | 13.65 ft in (4160 mm) |
| Reach At Max Lift And Dump | 3.83 ft in (1166 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6C7 8.3 |
| Net Power | 225 hp (167.8 kw) |
| Gross Power | 235 hp (175.3 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 715.5 lb ft (970 Nm) |
| Displacement | 506.5 cu in (8.3 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbo + aftercooled |
Operational
| Operating Weight | 43894.1 lb (19910 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Engine Oil Fluid Capacity | 6.4 gal (24 L) |
| Cooling System Fluid Capacity | 15.9 gal (60 L) |
| Transmission Fluid Capacity | 10.6 gal (40 L) |
| Front Axle/Diff Fluid Capacity | 10.1 gal (38 L) |
| Rear Axle/Diff Fluid Capacity | 10.1 gal (38 L) |
| Static Tipping Weight | 35714.9 lb (16200 kg) |
| Turning Radius | 2.2 ft in (670 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 23.5 - 25 GP-2B |
Transmission
| Transmission Type | Power-Shift Countershaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.2 mph (37.2 km/h) |
| Max Speed - Reverse | 24.3 mph (39 km/h) |
Hydraulic System
| Relief Valve Setting | 441.7 psi (3045 kPa) |
| Pump Flow Capacity | 91.2 gal/min (345 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.5 sec |
| Pump Type | gear type |
