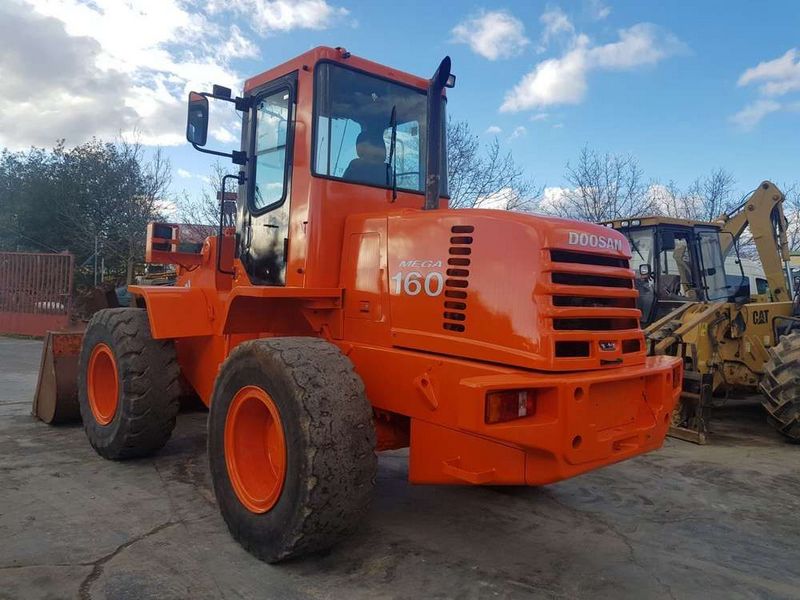

Doosan MEGA160-V
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.01 ft in (2745 mm) |
| Bucket Capacity - Heaped | 2.1 yd3 (1.6 m3) |
| Bucket Width | 8.04 ft in (2450 mm) |
| Breakout Force | 17200 lb (17200 -) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 20.97 ft in (6390 mm) |
| Width Over Tires | 7.55 ft in (2300 mm) |
| Height To Top Of Cab | 10.44 ft in (3180 mm) |
| Wheelbase | 8.86 ft in (2700 mm) |
| Hinge Pin - Max Height | 11.85 ft in (3610 mm) |
| Reach At Max Lift And Dump | 2.95 ft in (899 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2252 |
| Engine Model | DB58 |
| Net Power | 104 hp (77.6 kw) |
| Gross Power | 110 hp (82.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 268 lb ft (363.4 Nm) |
| Displacement | 353 cu in (5.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | naturally aspired |
Operational
| Operating Weight | 18960 lb (8600.2 kg) |
| Fuel Capacity | 48.9 gal (185 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Engine Oil Fluid Capacity | 3.5 gal (13 L) |
| Cooling System Fluid Capacity | 7.7 gal (29 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Rear Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Static Tipping Weight | 14330 lb (6500 kg) |
| Turning Radius | 17.7 ft in (5390 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | auto power-shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 14 mph (22.4 km/h) |
Hydraulic System
| Relief Valve Setting | 2845 psi (19616 kPa) |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3.1 sec |
| Pump Type | gear type |
