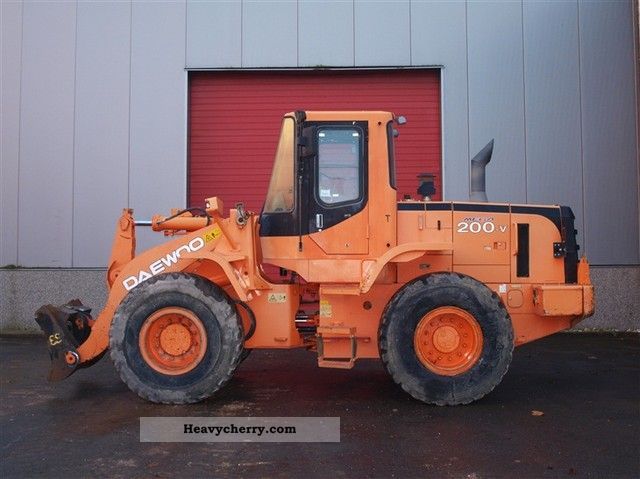

Daewoo MEGA200-V
Browse All Daewoo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.96 ft in (2730 mm) |
| Bucket Capacity - Heaped | 2.49 yd3 (1.9 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
| Breakout Force | 23150 lb (23150 -) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 23.09 ft in (7035 mm) |
| Height To Top Of Cab | 10.7 ft in (3260 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 12.56 ft in (3828 mm) |
| Reach At Max Lift And Dump | 3.15 ft in (960 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2253 |
| Engine Model | DB58Ti diesel |
| Net Power | 138 hp (103 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 412 lb ft (558.6 Nm) |
| Displacement | 354 cu in (5.8 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 24691.8 lb (11200 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Engine Oil Fluid Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 8.2 gal (31 L) |
| Transmission Fluid Capacity | 8 gal (30 L) |
| Front Axle/Diff Fluid Capacity | 5.3 gal (20 L) |
| Rear Axle/Diff Fluid Capacity | 5.3 gal (20 L) |
| Static Tipping Weight | 18739.3 lb (8500 kg) |
| Turning Radius | 18.6 ft in (5659 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 17.5x25x12PR |
Transmission
| Transmission Type | full auto power-shift countershaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 14.6 mph (23.4 km/h) |
Hydraulic System
| Relief Valve Setting | 2845 psi (19615.6 kPa) |
| Pump Flow Capacity | 46 gal/min (174.2 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3.3 sec |
| Pump Type | gear type |
