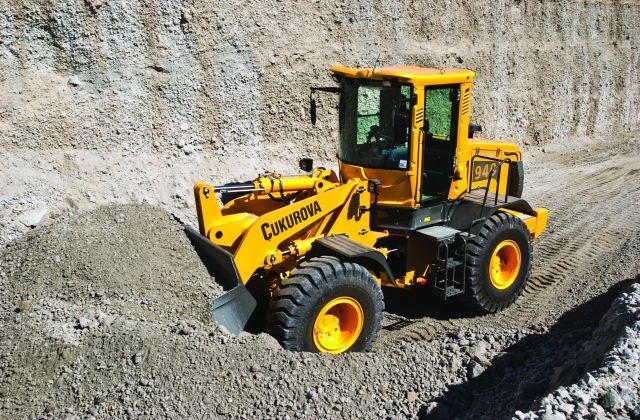

Cukurova 940
Browse All Cukurova or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.9 ft in (2710 mm) |
| Bucket Capacity - Heaped | 3.27 yd3 (2.5 m3) |
| Bucket Width | 8.54 ft in (2600 mm) |
| Breakout Force | 29854.63 lb (132.81 kN) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 23.23 ft in (7080 mm) |
| Width Over Tires | 8.45 ft in (2575 mm) |
| Height To Top Of Cab | 11.62 ft in (3540 mm) |
| Wheelbase | 9.59 ft in (2920 mm) |
| Hinge Pin - Max Height | 12.59 ft in (3835 mm) |
| Reach At Max Lift And Dump | 3.81 ft in (1160 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068TF275 Stage II |
| Gross Power | 166.3 hp (124 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 429.3 lb ft (582 Nm) |
| Displacement | 415 cu in (6.8 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 30093.1 lb (13650 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Engine Oil Fluid Capacity | 5.1 gal (19 L) |
| Cooling System Fluid Capacity | 10.1 gal (38 L) |
| Transmission Fluid Capacity | 6.7 gal (25 L) |
| Front Axle/Diff Fluid Capacity | 8 gal (30 L) |
| Rear Axle/Diff Fluid Capacity | 8 gal (30 L) |
| Static Tipping Weight | 33069.4 lb (15000 kg) |
| Turning Radius | 19.7 ft in (6000 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 20.5 - 25 / 16 PRL3 |
Transmission
| Transmission Type | ZF Full Powershift, electronic autoshift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 25.5 mph (41 km/h) |
| Max Speed - Reverse | 14.9 mph (23.9 km/h) |
Hydraulic System
| Relief Valve Setting | 3335.9 psi (23000 kPa) |
| Pump Flow Capacity | 55.5 gal/min (210 L/min) |
| Raise Time | 6.3 sec |
| Dump Time | 1.6 sec |
| Lower Time | 5.1 sec |
| Pump Type | load sensing hydraulic and steering system |
