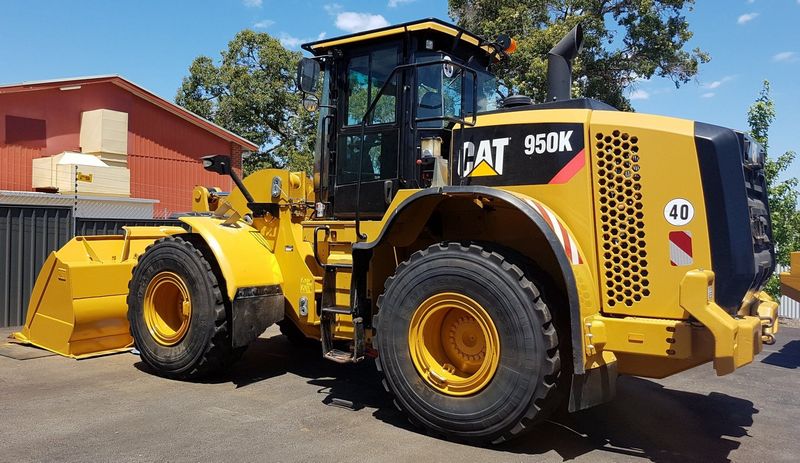

Caterpillar 950K
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 36194.24 lb (161 kN) |
| Bucket Capacity - Heaped | 15.7 yd3 (12 m3) |
Engine
| Engine Make | 2236 |
| Engine Model | C7.1 ACERT |
| Net Power | 210.6 hp (157 kw) |
| Displacement | 427.8 cu in (7.1 L) |
| Bore | 4.1 in (104.2 mm) |
| Stroke | 5.3 in (134.7 mm) |
| Net Power - Iso 9249 | 211 hp (157.4 kw) |
| Engine Model | Cat? C7.1 ACERT? |
| Peak Net Torque - 1,400 Rpm - Sae J1349 | 729 lb ft (988.4 Nm) |
| Maximum Gross Power - 1,900 Rpm - Sae J1995 | 232 hp (173.1 kw) |
| Maximum Net Power - 1,900 Rpm - Iso 9249 | 211 hp (157.4 kw) |
| Maximum Net Power - 1,900 Rpm - Sae J1349 | 211 hp (157.4 kw) |
| Maximum Gross Power - 1,900 Rpm - Sae J1995 - Metric | 234 hp (174.5 kw) |
| Maximum Net Power - 1,900 Rpm - Iso 9249 - Metric | 213 hp (158.9 kw) |
| Maximum Net Power - 1,900 Rpm - Sae J1349 - Metric | 213 hp (158.9 kw) |
| Maximum Net Power - 1,900 Rpm - Eec 80/1269 | 211 hp (157.4 kw) |
| Maximum Net Power - 1,900 Rpm - Eec 80/1269 - Metric | 213 hp (158.9 kw) |
| Maximum Engine Power - 1,900 Rpm - Iso 14396 | 230 hp (171.6 kw) |
| Maximum Engine Power - 1,900 Rpm - Iso 14396 - Metric | 234 hp (174.5 kw) |
| Peak Gross Torque - 1,300 Rpm - Sae J1995 | 777 lb ft (1053.5 Nm) |
Operational
| Operating Weight | 42824.8 lb (19425 kg) |
| Fuel Capacity | 83 gal (314 L) |
| Hydraulic System Fluid Capacity | 50 gal (189 L) |
| Static Tipping Weight | 24268.5 lb (11008 kg) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.6 mph (37.9 km/h) |
| Max Speed - Reverse | 24.8 mph (39.8 km/h) |
| Forward - 1 | 4.3 mph (7 km/h) |
| Forward - 2 | 8 mph (12.9 km/h) |
| Forward - 3 | 14.1 mph (22.7 km/h) |
| Forward - 4 | 23.6 mph (38 km/h) |
| Reverse - 1 | 4.7 mph (7.6 km/h) |
| Reverse - 2 | 8.8 mph (14.2 km/h) |
| Reverse - 3 | 15.4 mph (24.8 km/h) |
| Reverse - 4 | 24.7 mph (39.8 km/h) |
Weights
| Operating Weight | 42811 lb (19418.8 kg) |
Tires
| Tires | Choices |
Buckets
| Bucket Capacities | 2.50 to 9.20 m3 (3.25 to 12.00 yd3) |
Hydraulic System
| Raise Time | 5.9 sec |
| Dump Time | 1.8 sec |
| Lower Time | 2.5 sec |
Axles
| Front | Fixed |
| Rear | Oscillating ?13 degrees |
| Maximum Single-Wheel Rise And Fall | 18.9 in (480.1 mm) |
Hydraulic System
| Hydraulic Cycle Time - Total | 10 s |
| Implement System - Maximum Operating Pressure | 3800 psi |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 2.5 s |
| Steering System - Pump Type | Piston |
| Hydraulic Cycle Time - Raise From Carry Position | 5.9 s |
| Hydraulic Cycle Time - Dump, At Maximum Raise | 1.8 s |
| Implement System - Maximum Pump Output At 2,340 Rpm | 90 gal/min |
| Implement System - Optional 3rd And 4th Function Maximum Flow | 74 gal/min |
| Implement System - Optional 3rd And 4th Function Maximum Pressure | 3000 psi |
Brakes
| Brakes | Meet OSHA, SAE J1473 OCT90 and ISO 3450-1985 required standards |
Operating Specifications
| Breakout Force | 36203 lb (16421.5 kg) |
| Static Tipping Load - Full 40 Degrees Turn - Iso 14397-1* | 24261 lb (11004.7 kg) |
| Static Tipping Load - Full 40 Degrees Turn - Rigid Tires** | 25951 lb (11771.2 kg) |
Service Refill Capacities
| Cooling System | 15.9 gal (60.2 L) |
| Crankcase | 4.8 gal (18.2 L) |
| Hydraulic Tank | 49.9 gal (188.9 L) |
| Fuel Tank - Standard | 83 gal (314.2 L) |
| Transmission | 11.4 gal (43.2 L) |
| Differential - Final Drives - Front | 11.4 gal (43.2 L) |
| Differential - Final Drives - Rear | 11.4 gal (43.2 L) |
Sound
| Standards | Standards |
Cab
| Rops/Fops | Meets SAE and ISO standards |
