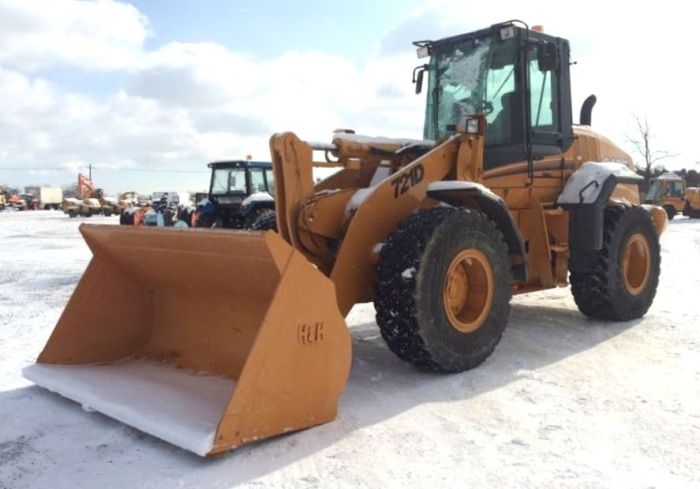

Case 721DXT
Browse All Case or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.62 ft in (2930 mm) |
| Bucket Capacity - Heaped | 3 yd3 (2.3 m3) |
| Bucket Width | 8.86 ft in (2700 mm) |
| Breakout Force | 28046 lb (124.76 kN) |
Dimensions
| Ground Clearance | 1.2 ft in (365 mm) |
| Length With Bucket On Ground | 25.99 ft in (7919 mm) |
| Width Over Tires | 8.54 ft in (2603 mm) |
| Height To Top Of Cab | 10.95 ft in (3337 mm) |
| Wheelbase | 10.68 ft in (3253 mm) |
| Hinge Pin - Max Height | 13.64 ft in (4157 mm) |
| Reach At Max Lift And Dump | 4.2 ft in (1279 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | Family III 668TA/E2 |
| Net Power | 170 hp (126.8 kw) |
| Gross Power | 181 hp (135 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 566 lb ft (767.4 Nm) |
| Displacement | 411 cu in (6.8 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged and air to air cooled |
| Torque Rise | 24.8 % |
Operational
| Operating Weight | 31574 lb (14321.8 kg) |
| Fuel Capacity | 65 gal (246 L) |
| Hydraulic System Fluid Capacity | 51.1 gal (193.1 L) |
| Engine Oil Fluid Capacity | 3.8 gal (14.2 L) |
| Cooling System Fluid Capacity | 9.8 gal (36.9 L) |
| Transmission Fluid Capacity | 6.8 gal (25.6 L) |
| Front Axle/Diff Fluid Capacity | 8.1 gal (30.3 L) |
| Rear Axle/Diff Fluid Capacity | 7.3 gal (27.4 L) |
| Static Tipping Weight | 27615.2 lb (12526 kg) |
| Turning Radius | 19 ft in (5770 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5x25 L3 |
Transmission
| Transmission Type | 4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.6 mph (38 km/h) |
| Max Speed - Reverse | 16 mph (25.8 km/h) |
Hydraulic System
| Relief Valve Setting | 3626 psi (25000 kPa) |
| Pump Flow Capacity | 206 gal/min (779.8 L/min) |
| Raise Time | 5.6 sec |
| Dump Time | 1.9 sec |
| Lower Time | 3.3 sec |
| Pump Type | closed centered pressure/flow compensated |
