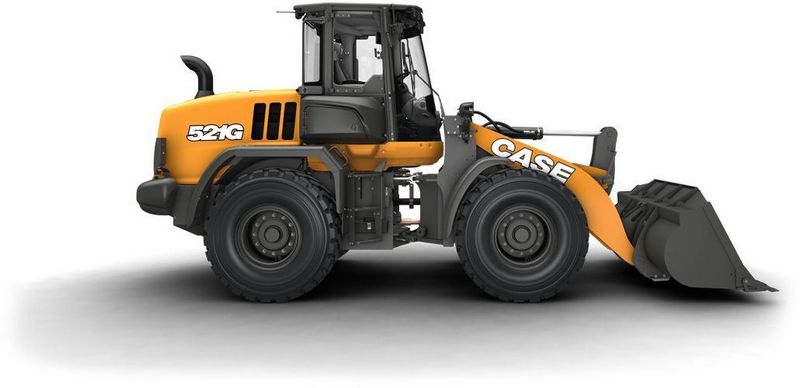

Case 521G
Browse All Case or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 2.31 yd3 (1.76 m3) |
| Breakout Force | 19356.05 lb (86.1 kN) |
Dimensions
| Ground Clearance | 1.12 ft in (341 mm) |
| Width Over Tires | 8.04 ft in (2448 mm) |
| Height To Top Of Cab | 10.75 ft in (3275 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Hinge Pin - Max Height | 11.84 ft in (3606 mm) |
| Reach At Max Lift And Dump | 4.74 ft in (1443 mm) |
| Turning Radius Outside Tires | 16.42 ft in (5002 mm) |
| Dump Height - Fully Raised, 45° Dump | 106.74 in (2711 mm) |
| Bucket Reach - Fully Raised, 45° Dump | 39.85 in (1012 mm) |
| Operating Height - Fully Raised With Spillgaurd | 184.34 in (4682 mm) |
| Overall Length (L/Bucket) | 21.94 ft in (6687 mm) |
| Overall Width Without Bucket | 96.38 in (2448 mm) |
Hydraulic Cycle Times (Unloaded)
| Total Cycle Time | 10.5 sec |
Engine
| Number Of Cylinders | 4 |
| Rated Engine Speed | 2000 rpm |
| Engine Model | FPT F4HFE413NB |
| Net Power | 129 hp (96.2 kw) |
| Gross Power | 142 hp (105.9 kw) |
| Max Torque | 448.5 lb ft (608 Nm) |
| Displacement | 274.7 cu in (4.5 L) |
| Torque Rise | 21 % |
| Emissions | Tier 4 |
| Alternator | 70 amps |
Operational
| Def Tank Capacity | 11.7 gal (44.2 L) |
| Operating Weight | 24290.6 lb (11018 kg) |
| Fuel Capacity | 50 gal (189 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Transmission Fluid Capacity | 6.9 gal (26 L) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | 24 degrees |
Performance
| Tipping Load | 17683.3 lb (8021 kg) |
Transmission
| Differential Lock | F: LSD / R: LSD |
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.4 mph (35.9 km/h) |
Hydraulic System
| Steering Pump Type | Articulation |
| Maximum System Pressure | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 35.4 gal/min (134 L/min) |
| Pump Type | Piston |
Brakes
| Service Brake | Wet Multi Disc |
