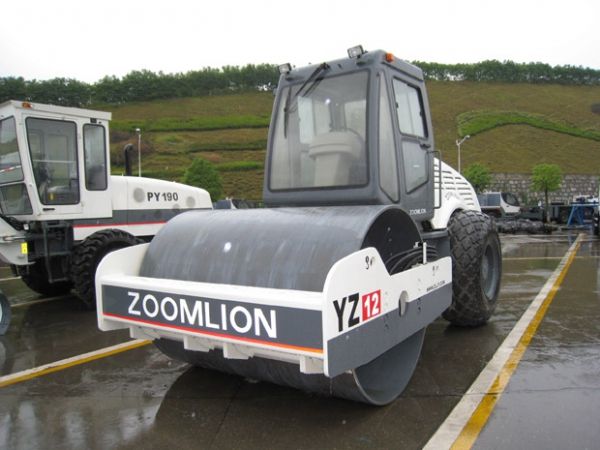

Zoomlion YZ12
Contents:
| Overall Length | 18.97 in (5780 mm) |
| Overall Width | 7.55 ft in (2300 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Drum Diameter - Front | 5.12 ft in (1560 mm) |
| Engine Model | QSB4.5-C110 |
| Gross Power | 110 hp (82 kw) |
| Power Measured @ | 2500 rpm |
| Operating Weight | 26455.5 lb (12000 kg) |
| Max Speed | 5.6 mph (9 km/h) |
| Tires *If Applicable | 23.1-26 |
| Operating Voltage | 24 V |
| Drum Width | 84.7 in (2150 mm) |
| Drum Diameter | 61.5 in (1560 mm) |
| Static Linear Load | 184.8 lb/in (33 kg/cm) |
| Vibration Frequency 1 | 29 Hz |
| Nominal Amplitude - High | 0.1 in (0.9 mm) |
| Vibration Frequency 2 | 32 Hz |
| Nominal Amplitude - Low | 0.1 in (1.7 mm) |
| Centrifugal Force - High | 35969.5 lb (160 kN) |
| Centrifugal Force - Low | 58450.4 lb (260 kN) |
