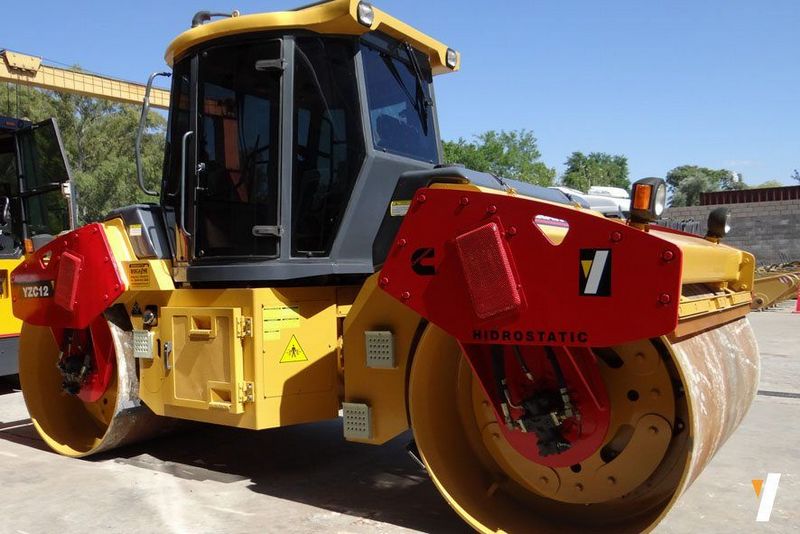

YTO YZC12
Browse All YTO or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 15.75 in (4800 mm) |
| Overall Width | 7.55 ft in (2300 mm) |
| Height To Top Of Cab | 9.59 ft in (2920 mm) |
| Wheelbase | 10.16 in (3095 mm) |
| Ground Clearance | 13.39 in (340 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | F6L912 |
| Gross Power | 110.6 hp (82.4 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight | 26455.5 lb (12000 kg) |
| Fuel Capacity | 58.2 gal (220 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Max Speed | 8.6 mph (13.8 km/h) |
| Operating Voltage | 12 V |
| Turning Radius | 20.9 ft in (6350 mm) |
Drum
| Drum Width | 82.7 in (2100 mm) |
| Drum Diameter | 49.3 in (1250 mm) |
| Static Linear Load | 1601.6 lb/in (286 kg/cm) |
| Vibration Frequency 1 | 50 Hz |
| Nominal Amplitude - High | 0.1 in (0.8 mm) |
| Vibration Frequency 2 | 40 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 60698.5 lb (270 kN) |
| Centrifugal Force - Low | 44512.2 lb (198 kN) |
