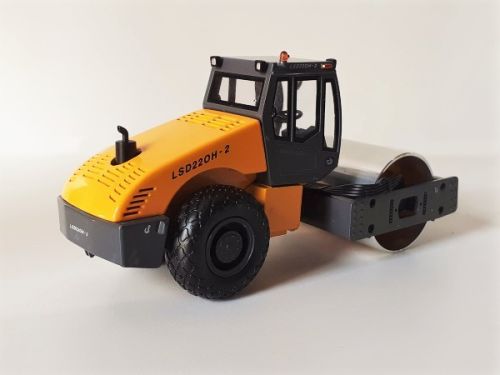

YTO LSD220H
Browse All YTO or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 19.89 in (6060 mm) |
| Overall Width | 7.54 ft in (2298 mm) |
| Height To Top Of Cab | 9.82 ft in (2993 mm) |
| Wheelbase | 10.41 in (3170 mm) |
| Ground Clearance | 18.59 in (472 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 6CT8.3 |
| Gross Power | 190.5 hp (142 kw) |
Operational
| Operating Weight | 44092.5 lb (20000 kg) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Max Speed | 7 mph (11.2 km/h) |
| Operating Voltage | 24 V |
| Turning Radius | 23 ft in (7000 mm) |
Drum
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 63 in (1600 mm) |
| Static Linear Load | 3359.9 lb/in (600 kg/cm) |
| Vibration Frequency 1 | 35 Hz |
| Nominal Amplitude - High | 0.1 in (1.9 mm) |
| Vibration Frequency 2 | 29 Hz |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 83179.4 lb (370 kN) |
| Centrifugal Force - Low | 60698.5 lb (270 kN) |
