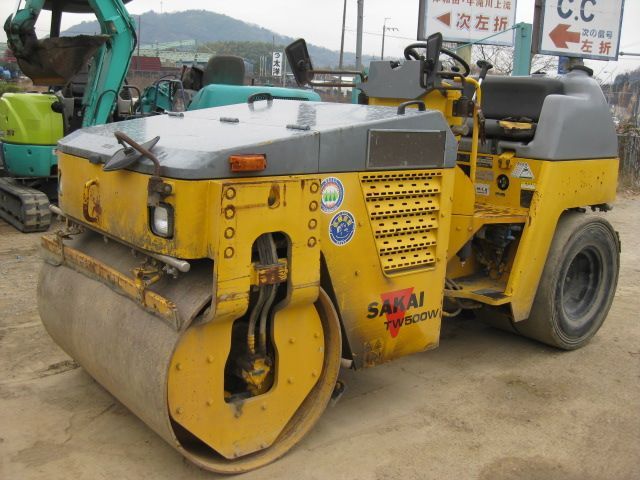

Sakai TW500W-1E
Browse All Sakai or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 10.19 in (3105 mm) |
| Height To Top Of Cab | 5.58 ft in (1700 mm) |
| Wheelbase | 7.55 in (2300 mm) |
| Ground Clearance | 11.03 in (280 mm) |
Engine
| Engine Make | 2353 |
| Engine Model | 4LE1 |
| Gross Power | 38.9 hp (29 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight | 7848.5 lb (3560 kg) |
| Fuel Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Max Speed | 6.5 mph (10.4 km/h) |
| Tires *If Applicable | 10.5-80-16-6PR(OR) |
Drum
| Drum Width | 51.2 in (1300 mm) |
| Drum Diameter | 31.5 in (800 mm) |
| Vibration Frequency 1 | 52 Hz |
| Centrifugal Force - Med | 6519.5 lb (29 kN) |
