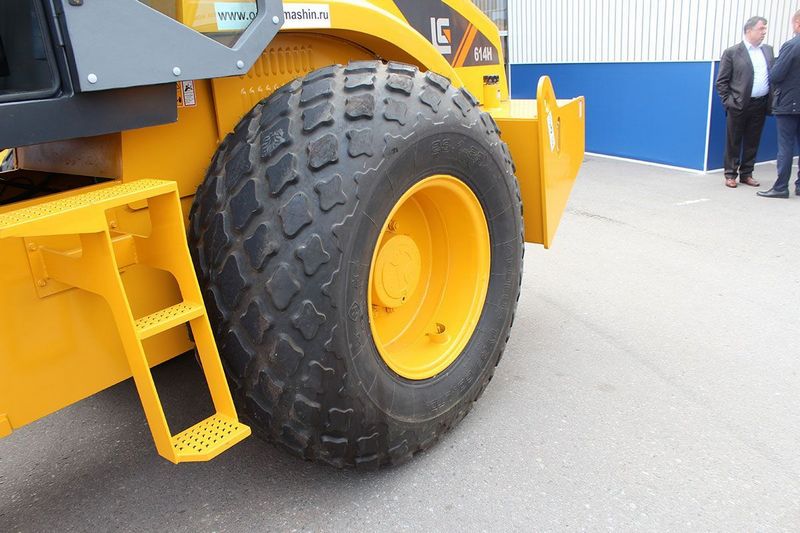

LiuGong 614H
Browse All LiuGong or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 19.69 in (6000 mm) |
| Overall Width | 7.29 ft in (2220 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Wheelbase | 9.85 in (3000 mm) |
| Drum Diameter - Front | 4.93 ft in (1500 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 6BTA5.9-C145 |
| Net Power | 144.9 hp (108 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 31967.1 lb (14500 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Max Speed | 6.5 mph (10.3 km/h) |
| Tires *If Applicable | 23.1-26-14PR |
| Operating Voltage | 24 V |
Drum
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Vibration Frequency 1 | 28 Hz |
| Nominal Amplitude - High | 0.1 in (1 mm) |
| Vibration Frequency 2 | 32 Hz |
| Nominal Amplitude - Low | 0.1 in (1.9 mm) |
| Centrifugal Force - High | 35969.5 lb (160 kN) |
| Centrifugal Force - Low | 67442.7 lb (300 kN) |
