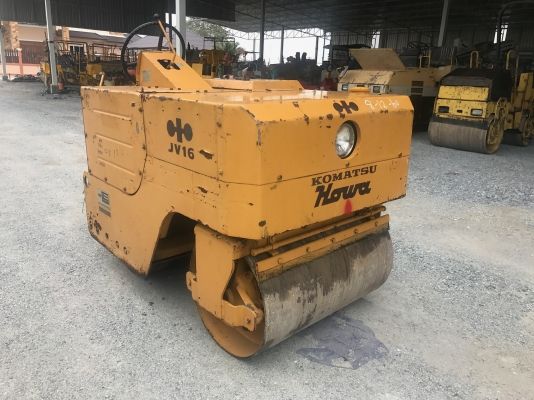

Komatsu JV16-1
Contents:
| Overall Length | 6.6 in (2010 mm) |
| Height To Top Of Cab | 4.53 ft in (1380 mm) |
| Wheelbase | 2.96 in (900 mm) |
| Ground Clearance | 6.5 in (165 mm) |
| Engine Make | 2251 |
| Engine Model | C NM10-31HM |
| Gross Power | 8.5 hp (6.4 kw) |
| Displacement | 35.2 cu in (0.6 L) |
| Operating Weight | 2799.9 lb (1270 kg) |
| Fuel Capacity | 2.3 gal (8.7 L) |
| Engine Oil Capacity | 0.7 gal (2.4 L) |
| Max Speed | 2.5 mph (4 km/h) |
| Drum Width | 31.5 in (800 mm) |
| Drum Diameter | 19.7 in (500 mm) |
| Static Linear Load | 135.2 lb/in (9.5 kg/cm) |
| Vibration Frequency 1 | 55 Hz |
| Centrifugal Force - Med | 3530 lb (15.8 kN) |
