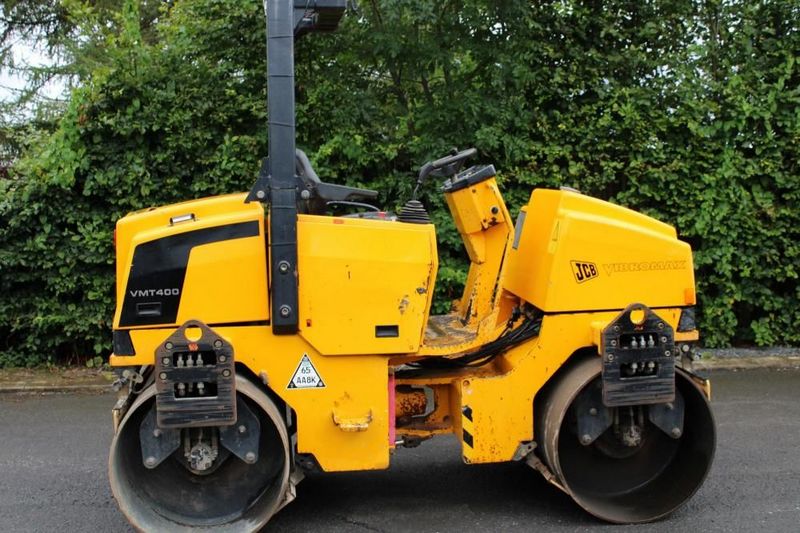

JCB VMT400
Browse All JCB or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 9.29 in (2830 mm) |
| Height To Top Of Cab | 8.31 ft in (2530 mm) |
| Wheelbase | 7.55 in (2300 mm) |
| Ground Clearance | 12.01 in (305 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V 2203 |
| Gross Power | 46.6 hp (34.8 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 134 cu in (2.2 L) |
Operational
| Operating Weight | 8774 lb (3979.9 kg) |
| Fuel Capacity | 20.1 gal (76.1 L) |
| Engine Oil Capacity | 2.6 gal (9.5 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Max Speed | 6.8 mph (11 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 45 amps |
Drum
| Drum Width | 55.2 in (1400 mm) |
| Drum Diameter | 31.5 in (800 mm) |
| Static Linear Load | 78 lb/in (14 kg/cm) |
| Vibration Frequency 1 | 55 Hz |
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Centrifugal Force - High | 11465 lb (51 kN) |
