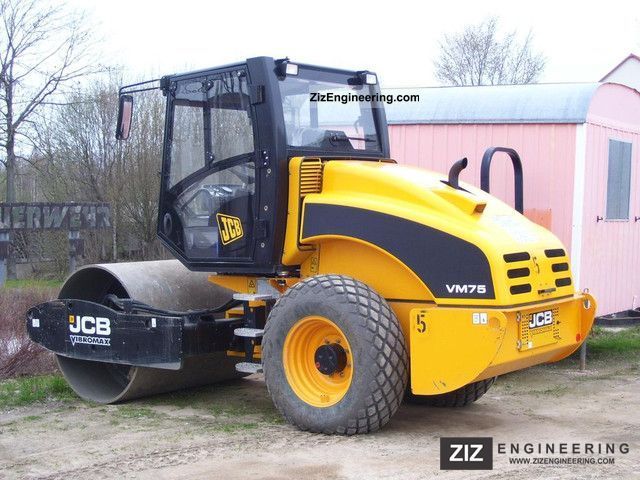

JCB VM75D
Browse All JCB or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 16.04 in (4887 mm) |
| Overall Width | 6.14 ft in (1870 mm) |
| Height To Top Of Cab | 9.34 ft in (2845 mm) |
| Wheelbase | 8.25 in (2514 mm) |
| Ground Clearance | 15.32 in (389 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B 3.3 |
| Gross Power | 80 hp (59.7 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 199 cu in (3.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 16094 lb (7300.2 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Engine Oil Capacity | 2.2 gal (8 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires *If Applicable | 14.9-24/6PR AWT |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 amps |
Drum
| Drum Width | 68.9 in (1750 mm) |
| Drum Diameter | 48.1 in (1220 mm) |
| Static Linear Load | 115 lb/in (20.6 kg/cm) |
| Vibration Frequency 1 | 29 Hz |
| Nominal Amplitude - High | 0.1 in (0.8 mm) |
| Vibration Frequency 2 | 36 Hz |
| Centrifugal Force - High | 18884 lb (84.1 kN) |
