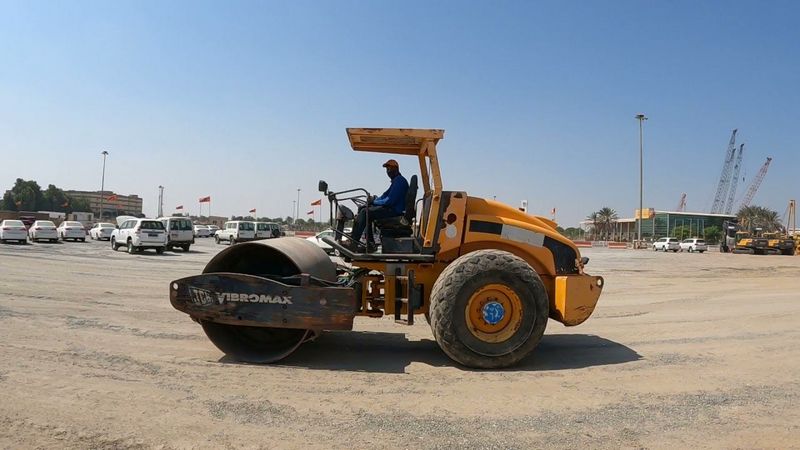

JCB VM115D
Browse All JCB or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 17.87 in (5444 mm) |
| Overall Width | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 9.63 ft in (2935 mm) |
| Wheelbase | 9.34 in (2846 mm) |
| Ground Clearance | 17.6 in (447 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | JBC444TA |
| Gross Power | 125 hp (93.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 268 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 24912 lb (11299.9 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Engine Oil Capacity | 2.9 gal (10.9 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Max Speed | 6.6 mph (10.5 km/h) |
| Tires *If Applicable | 23.1-26/8 PR AWT |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Drum
| Drum Width | 82.7 in (2100 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 160 lb/in (28.6 kg/cm) |
| Vibration Frequency 1 | 31 Hz |
| Nominal Amplitude - High | 0.1 in (2 mm) |
| Vibration Frequency 2 | 36 Hz |
| Centrifugal Force - High | 36644 lb (163.1 kN) |
