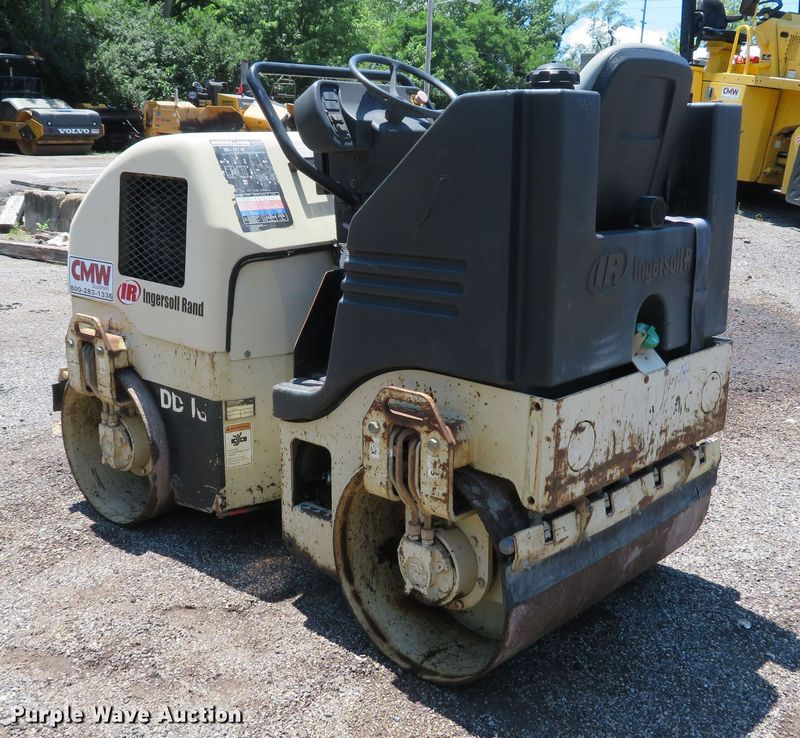

Ingersoll Rand DD16
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 6.68 in (2034 mm) |
| Overall Width | 3.56 ft in (1085 mm) |
| Height To Top Of Cab | 7.36 ft in (2241 mm) |
| Wheelbase | 4.6 in (1400 mm) |
| Ground Clearance | 17.29 in (439 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | D722 diesel |
| Gross Power | 16.9 hp (12.7 kw) |
Operational
| Operating Weight | 3379.7 lb (1533 kg) |
| Fuel Capacity | 7.8 gal (29.5 L) |
| Hydraulic System Fluid Capacity | 9.1 gal (34.1 L) |
| Max Speed | 5 mph (8 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Drum
| Drum Width | 39.4 in (1000 mm) |
| Drum Diameter | 22.1 in (560 mm) |
| Vibration Frequency 1 | 66.7 Hz |
| Nominal Amplitude - High | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 4001.6 lb (17.8 kN) |
