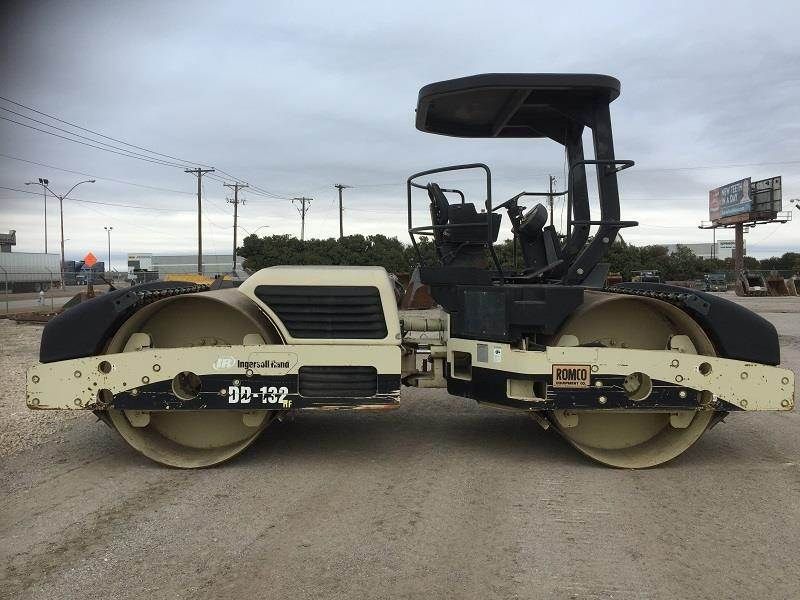

Ingersoll Rand DD132HF
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 19.67 in (5995 mm) |
| Overall Width | 7.67 ft in (2335 mm) |
| Height To Top Of Cab | 10.44 ft in (3180 mm) |
| Wheelbase | 11.65 in (3550 mm) |
| Ground Clearance | 20.08 in (510 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB5.9-155 |
| Gross Power | 155.6 hp (116 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 30313.6 lb (13750 kg) |
| Fuel Capacity | 68.5 gal (259 L) |
| Hydraulic System Fluid Capacity | 36.5 gal (138 L) |
| Max Speed | 6.2 mph (9.9 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Drum
| Drum Width | 84.1 in (2135 mm) |
| Drum Diameter | 55.2 in (1400 mm) |
| Vibration Frequency 1 | 45 Hz |
| Nominal Amplitude - High | 0.1 in (0.9 mm) |
| Vibration Frequency 2 | 66.7 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 41724.6 lb (185.6 kN) |
| Centrifugal Force - Low | 36688.9 lb (163.2 kN) |
