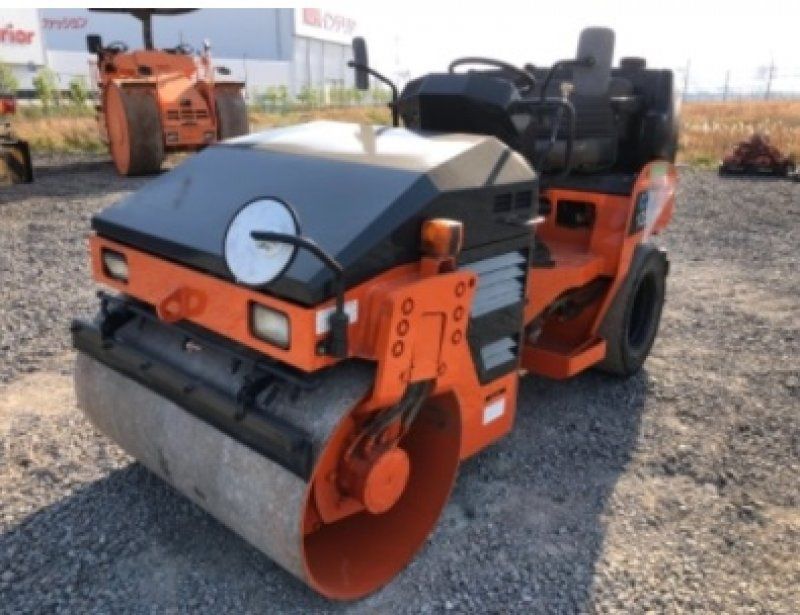

Hitachi CC135-3A
Contents:
| Overall Length | 8.63 in (2630 mm) |
| Height To Top Of Cab | 5.16 ft in (1570 mm) |
| Wheelbase | 6.4 in (1950 mm) |
| Ground Clearance | 7.88 in (200 mm) |
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D1703-EDM |
| Net Power | 28.3 hp (21.1 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 100.6 cu in (1.7 L) |
| Operating Weight | 6746.2 lb (3060 kg) |
| Fuel Capacity | 13.3 gal (50 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Drum Width | 47.3 in (1200 mm) |
| Drum Diameter | 31.5 in (682 mm) |
| Static Linear Load | 69.5 lb/in (12.4 kg/cm) |
| Vibration Frequency 1 | 55 Hz |
| Centrifugal Force - Med | 4631.1 lb (20.6 kN) |
