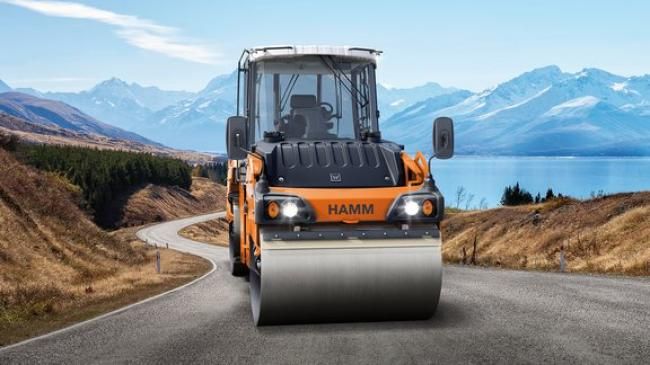

Hamm HD PLUS 90i PH VO
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 188.98 in (4800 mm) |
| Overall Width | 5.91 ft in (1800 mm) |
| Height To Top Of Cab | 9.78 ft in (2980 mm) |
| Wheelbase | 141.74 in (3600 mm) |
| Ground Clearance | 31.5 in (800 mm) |
| Turning Radius - Inside | 19.36 ft in (5900 mm) |
| Width Over Tyres | 63.55 in (1614 mm) |
Engine
| Emission Tier Level | EPA Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2.9 L4 |
| Gross Power | 74.3 hp (55.4 kw) |
| Net Power | 74.2 hp (55.4 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight Cabin | 20326.7 lb (9220 kg) |
| Operating Weight Rops | 19951.9 lb (9050 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 25926.4 lb (11760 kg) |
| Fuel Capacity | 45.8 gal (173 L) |
| Water Spray Tank Fluid Capacity | 220.4 gal (834 L) |
| Max Speed | 3.8 mph (6 km/h) |
Drum
| Oscillation Force - Front | 28775.6 lb (128 kN) |
| Oscillation Frequency - Front | 39 Hz |
| Tangential Amplitude - Front | 0.1 in (1.3 mm) |
| Drum Thickness | 0.7 in (17 mm) |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 47.3 in (1200 mm) |
| Static Linear Load | 155.7 lb/in (27.8 kg/cm) |
| Vibration Frequency 1 | 42 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Vibration Frequency 2 | 50 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 16860.7 lb (75 kN) |
| Centrifugal Force - Low | 13488.6 lb (60 kN) |
