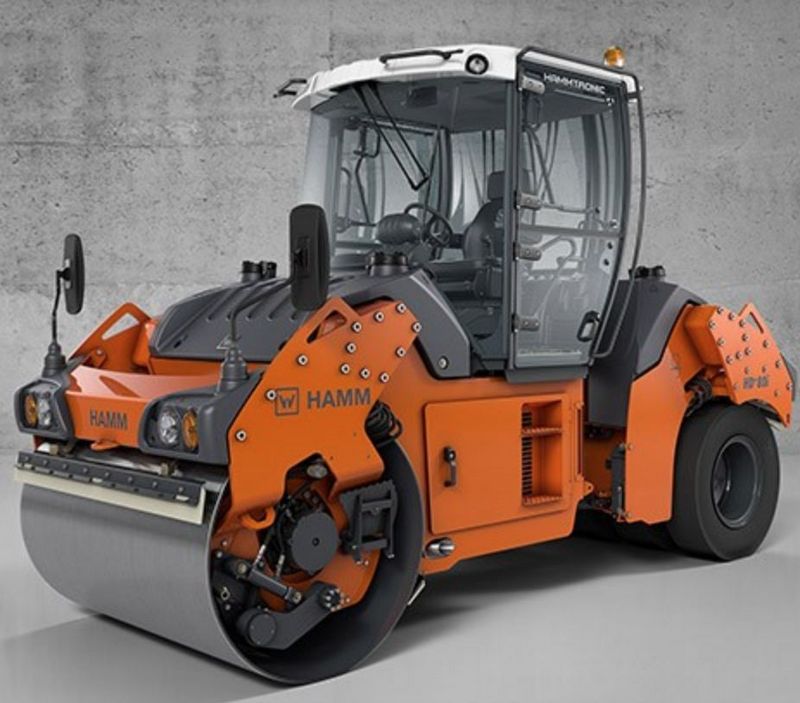

Hamm HD PLUS 80i OT
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 176.38 in (4480 mm) |
| Overall Width | 4.95 ft in (1506 mm) |
| Height To Top Of Cab | 9.49 ft in (2890 mm) |
| Wheelbase | 131.5 in (3340 mm) |
| Ground Clearance | 29.53 in (750 mm) |
| Turning Radius - Inside | 13.59 ft in (4140 mm) |
| Height With Rops | 6.83 ft in (2080 mm) |
| Width Over Tyres | 63.55 in (1614 mm) |
Engine
| Emission Tier Level | EPA Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2.9 L4 |
| Gross Power | 74.3 hp (55.4 kw) |
| Net Power | 74.2 hp (55.4 kw) |
| Power Measured @ | 2500 rpm |
Operational
| Operating Weight Cabin | 16446.5 lb (7460 kg) |
| Operating Weight Rops | 16071.7 lb (7290 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 21869.9 lb (9920 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Water Spray Tank Fluid Capacity | 185 gal (700 L) |
| Max Speed | 3.8 mph (6 km/h) |
| Tires | 4 |
| Tires *If Applicable | 11.00-20 |
Drum
| Oscillation Force - Front | 28775.6 lb (128 kN) |
| Oscillation Frequency - Front | 40 Hz |
| Tangential Amplitude - Front | 0.1 in (1.3 mm) |
| Drum Thickness | 0.8 in (20 mm) |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 44.9 in (1140 mm) |
| Static Linear Load | 133.9 lb/in (23.9 kg/cm) |
| Vibration Frequency 1 | 42 Hz |
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Vibration Frequency 2 | 50 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 14163 lb (63 kN) |
| Centrifugal Force - Low | 14163 lb (63 kN) |
