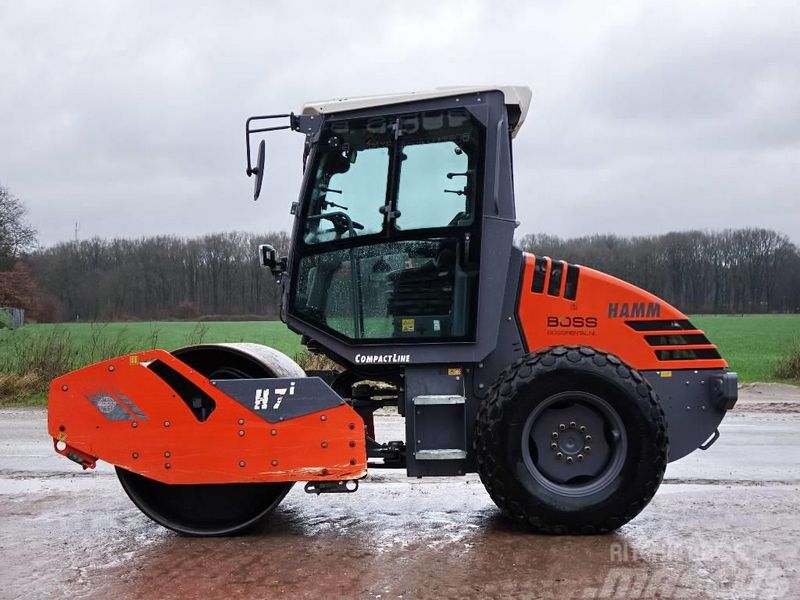

Hamm H7i VIO
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 173.59 in (4409 mm) |
| Height To Top Of Cab | 9.6 ft in (2925 mm) |
| Wheelbase | 90.79 in (2306 mm) |
| Ground Clearance | 12.49 in (317 mm) |
| Angle Of Driving Slope-Front | 38 degrees |
| Width Over Cab | 72.6 in (1844 mm) |
| Angle Of Driving Slope-Rear | 42 degrees |
| Loadover Height | 9.6 ft in (2.93 m) |
| Turning Radius - Inside | 10.86 ft in (3310 mm) |
Steering System
| Oscillating Angle | 10 degrees |
| Steering Method | Articulated steering |
Speeds
| Speed - Working Gear | 6 mph (9.7 km/h) |
| Speed - Transportation Gear | 12 mph (19.4 km/h) |
| Size Of Tyres, Rear | AW 14.9-24 8 TL |
Engine
| Emissions Certification | EU Stage IIIB / EPA Tier 4 |
| Exhaust Gas Recirculation (Egr) | DOC-DPF |
| Engine Power@Iso 14396 | 73.3 hp (54.6 kw) |
| Engine Power@Saej1349 | 73.3 hp (54.6 kw) |
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | V3307-CR-T |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Cabin | 13944.3 lb (6325 kg) |
| Operating Weight Rops | 13459.3 lb (6105 kg) |
| Fuel Capacity | 32.5 gal (123 L) |
| Max Weight | 15057.6 lb (6830 kg) |
| Axle Load - Front | 8300.5 lb (3765 kg) |
| Axle Load - Rear | 5643.9 lb (2560 kg) |
Drum
| Oscillation Force - Front | 27651.5 lb (123 kN) |
| Oscillation Frequency - Front | 36 Hz |
| Tangential Amplitude - Front | 5.4 in (137 mm) |
| Drum Type | smooth |
| Drum Thickness | 0.8 in (20 mm) |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 47.5 in (1206 mm) |
| Static Linear Load | 125.5 lb/in (22.4 kg/cm) |
| Vibration Frequency 1 | 36 Hz |
| Nominal Amplitude - High | 0.1 in (1.4 mm) |
| Centrifugal Force - High | 27651.5 lb (123 kN) |
