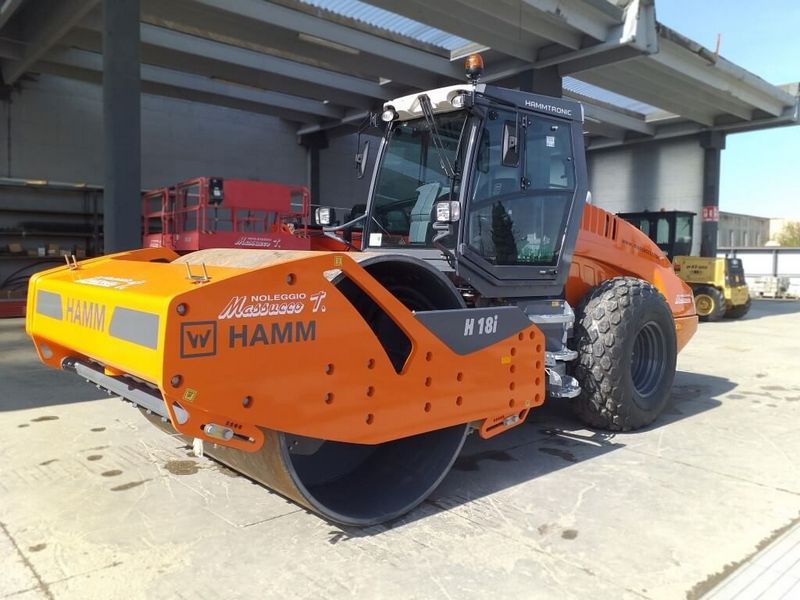

Hamm H18i
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 259.85 in (6600 mm) |
| Height To Top Of Cab | 9.75 ft in (2970 mm) |
| Wheelbase | 128.55 in (3265 mm) |
| Ground Clearance | 15.36 in (390 mm) |
| Angle Of Driving Slope-Front | 43 degrees |
| Width Over Cab | 90.87 in (2308 mm) |
| Angle Of Driving Slope-Rear | 28 degrees |
| Loadover Height | 7.62 ft in (2.32 m) |
| Turning Radius - Inside | 13.78 ft in (4200 mm) |
Steering System
| Oscillating Angle | 10 degrees |
| Steering Method | Articulated steering |
Speeds
| Size Of Tyres, Rear | AW 23.1-26 12 PR |
Engine
| Emissions Certification | EU Stage IV / EPA Tier 4 |
| Diesel Fuel Tank Capacity - Standard Tank | 8.5 gal (32 L) |
| Exhaust Gas Recirculation (Egr) | DOC-DPF-SCR |
| Engine Power@Iso 14396 | 214.6 hp (160 kw) |
| Engine Power@Saej1349 | 214.6 hp (160 kw) |
| Number Of Cylinders | 6 |
| Engine Make | Deutz |
| Engine Model | TCD 6.1 L6 |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight Cabin | 40355.7 lb (18305 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Max Weight | 45283 lb (20540 kg) |
| Max Speed | 12 mph (19.4 km/h) |
| Axle Load - Front | 26157.9 lb (11865 kg) |
| Axle Load - Rear | 14197.8 lb (6440 kg) |
Drum
| Drum Type | smooth |
| Drum Thickness | 1.8 in (45 mm) |
| Drum Width | 84.3 in (2140 mm) |
| Drum Diameter | 63 in (1600 mm) |
| Static Linear Load | 310.3 lb/in (55.4 kg/cm) |
| Vibration Frequency 1 | 27 Hz |
| Nominal Amplitude - High | 0.1 in (2.1 mm) |
| Vibration Frequency 2 | 30 Hz |
| Nominal Amplitude - Low | 0.1 in (1.3 mm) |
| Centrifugal Force - High | 74411.8 lb (331 kN) |
| Centrifugal Force - Low | 54403.8 lb (242 kN) |
