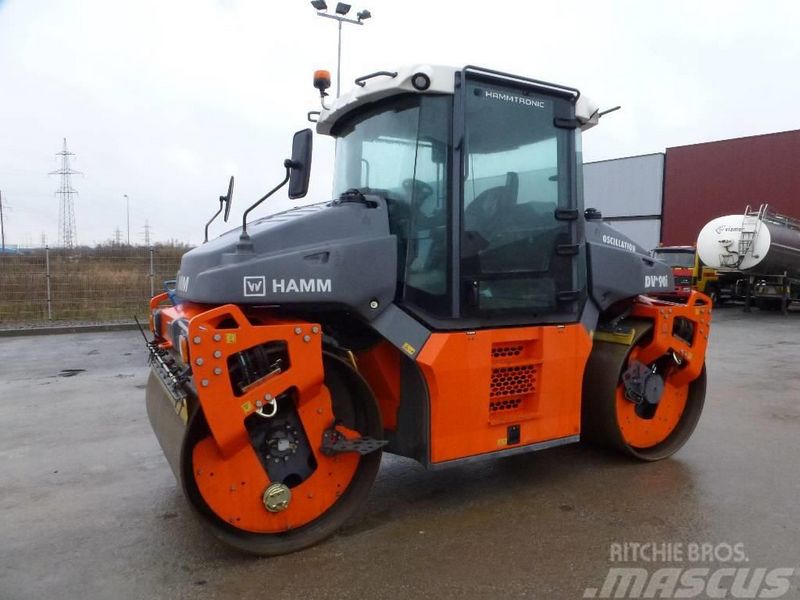

Hamm DV PLUS 90i VV-S
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 175.2 in (4450 mm) |
| Overall Width | 6.11 ft in (1860 mm) |
| Height To Top Of Cab | 9.73 ft in (2965 mm) |
| Wheelbase | 127.96 in (3250 mm) |
| Ground Clearance | 26.19 in (665 mm) |
| Maximum Width | 10006.57 ft in (3050 m) |
| Turning Radius - Inside | 9.85 ft in (3000 mm) |
Speeds
| Speed - Working Gear | 6.9 mph (11 km/h) |
Engine
| Emissions Certification | EPA Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 3.6 L4 |
| Gross Power | 99.8 hp (74.4 kw) |
| Net Power | 99.8 hp (74.4 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Cabin | 21010.1 lb (9530 kg) |
| Oscillating Angle | 4 degrees |
| Operating Weight | 27249.2 lb (12360 kg) |
| Fuel Capacity | 42.3 gal (160 L) |
| Water Spray System Fluid Capacity | 241.2 gal (913 L) |
Drum
| Drum Type | Smooth/divided |
| Drum Thickness | 0.7 in (17 mm) |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 47.3 in (1200 mm) |
| Static Linear Load | 167.5 lb/in (29.9 kg/cm) |
| Vibration Frequency 1 | 42 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Vibration Frequency 2 | 50 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 18884 lb (84 kN) |
| Centrifugal Force - Low | 17535.1 lb (78 kN) |
