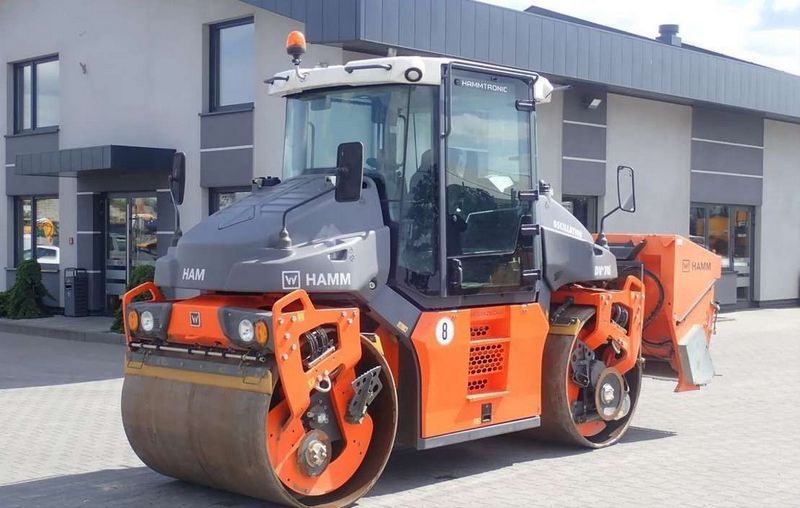

Hamm DV PLUS 70i VO-S
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 163 in (4140 mm) |
| Overall Width | 5.52 ft in (1680 mm) |
| Height To Top Of Cab | 9.72 ft in (2960 mm) |
| Wheelbase | 118.12 in (3000 mm) |
| Ground Clearance | 24.02 in (610 mm) |
| Maximum Width | 9087.93 ft in (2770 m) |
| Turning Radius - Inside | 9.19 ft in (2800 mm) |
Speeds
| Speed - Working Gear | 6.9 mph (11 km/h) |
Engine
| Emissions Certification | EPA Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | V3307-CR-T |
| Gross Power | 99.7 hp (74.3 kw) |
| Net Power | 98.2 hp (73.2 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Cabin | 17229.2 lb (7815 kg) |
| Operating Weight | 23126.5 lb (10490 kg) |
| Fuel Capacity | 39.1 gal (148 L) |
| Water Spray Tank Fluid Capacity | 208.2 gal (788 L) |
| Steering Angle | 4 degrees |
Drum
| Drum Thickness | 0.7 in (17 mm) |
| Drum Type | smooth/divided |
| Oscillation Force , Rear -1 | 22031.3 lb (98 kN) |
| Oscillation Frequency , Rear - 1 | 36 Hz |
| Tangential Amplitude , Rear - 1 | 0.1 in (1.3 mm) |
| Drum Width | 59.1 in (1500 mm) |
| Drum Diameter | 44.9 in (1140 mm) |
| Static Linear Load | 145.1 lb/in (25.9 kg/cm) |
| Vibration Frequency 1 | 42 Hz |
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Vibration Frequency 2 | 50 Hz |
| Centrifugal Force - High | 15062.2 lb (67 kN) |
