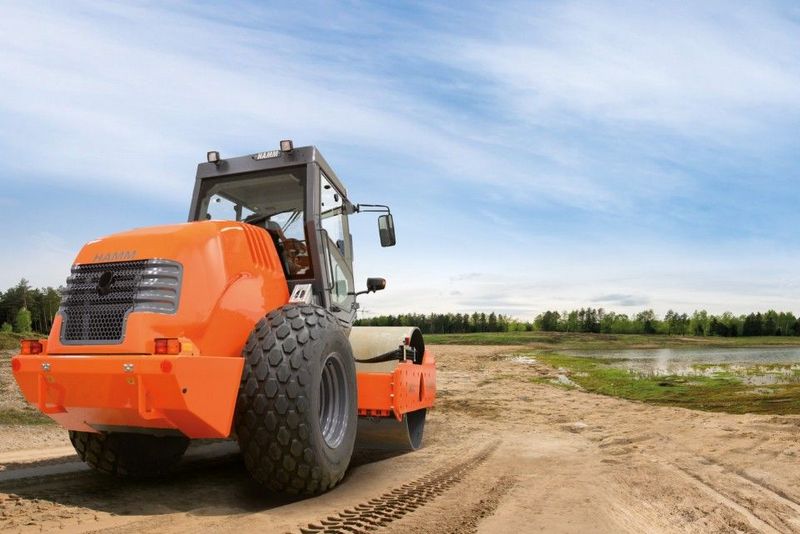

Hamm 3412 VIO
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 224.61 in (5705 mm) |
| Height To Top Of Cab | 9.81 ft in (2990 mm) |
| Wheelbase | 118.71 in (3015 mm) |
| Ground Clearance | 14.77 in (375 mm) |
| Angle Of Driving Slope-Front | 31 degrees |
| Width Over Cab | 88.59 in (2250 mm) |
| Angle Of Driving Slope-Rear | 34 degrees |
| Loadover Height | 7.63 ft in (2.33 m) |
| Turning Radius - Inside | 12.11 ft in (3690 mm) |
Steering System
| Steering Method | Articulated steering |
| Oscillating Angle | 10 degrees |
Speeds
| Speed - Working Gear | 7 mph (11.3 km/h) |
| Speed - Transportation Gear | 11 mph (17.8 km/h) |
| Size Of Tyres, Rear | AW 23.1-26 12 PR |
Engine
| Emissions Certification | EU Stage IIIA / EPA Tier 3 |
| Engine Power@Iso 14396 | 1341.1 hp (1000 kw) |
| Engine Power@Saej1349 | 1341.1 hp (1000 kw) |
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 2012 L04 2V |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight Cabin | 26290.2 lb (11925 kg) |
| Operating Weight Rops | 25805.2 lb (11705 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Max Weight | 33664.6 lb (15270 kg) |
| Max Speed | 14 mph (22.6 km/h) |
| Axle Load - Front | 14782 lb (6705 kg) |
| Axle Load - Rear | 12114.5 lb (5495 kg) |
Drum
| Oscillation Force - Front | 51706.1 lb (230 kN) |
| Oscillation Frequency - Front | 30 Hz |
| Tangential Amplitude - Front | 6.9 in (174 mm) |
| Drum Type | smooth |
| Drum Thickness | 1.2 in (30 mm) |
| Drum Width | 84.3 in (2140 mm) |
| Drum Diameter | 59.3 in (1504 mm) |
| Static Linear Load | 313 lb/in (55.9 kg/cm) |
| Vibration Frequency 1 | 33 Hz |
| Nominal Amplitude - High | 7.5 in (189 mm) |
| Centrifugal Force - High | 62721.7 lb (279 kN) |
